Om Power OM 2000+ 2000W amplifier

New model with touch display and other functions.

The OM-Power Amplifier OM2000+ operates from 1.8 - 29 MHz, including the WARC bands. The amplifier also works on 50 MHz. A FU-728F ceramic tetrode ensures stable power up to 2000W.

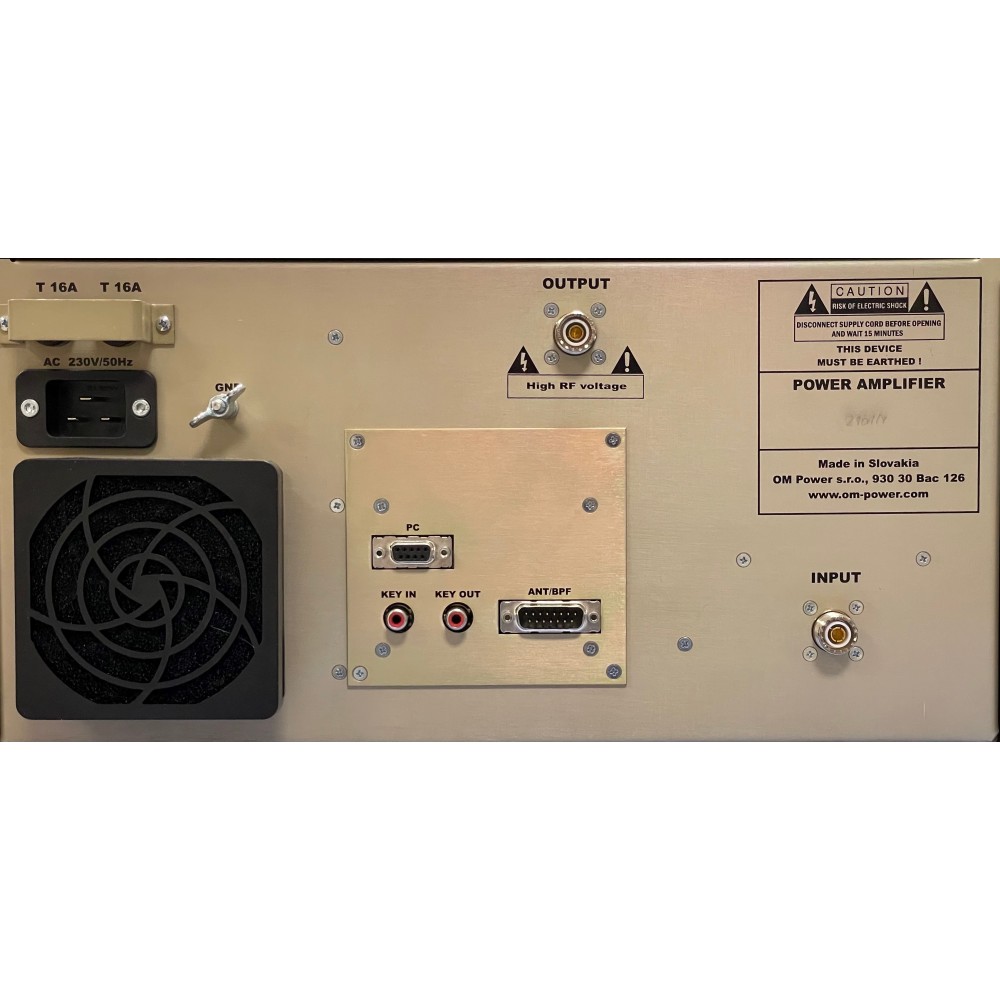

The OM2000+ has 3 antenna outputs, which can be easily switched from the front panel. The operating parameters are displayed on an OLED display with 4x20 characters. Additionally, an analog cross needle meter for direct and reflected power is installed.

Furthermore, several LEDs indicate the operating status at a glance. For simple adjustment of the operating frequency, there is a TUNE-indicator, which indicates the correct tuning.

Protection circuits avoid damage to OM2000 + in case of incorrect operation. Critical parameters such as too high SWR, too high a grid or anode current, mismatch, etc. are constantly monitored. If an error occurs, the PA switches to standby mode.

A temperature-controlled fan ensures sufficient cooling of the FU-728F tetrode. If the tube needs to be changed, the voltage automatically calibrates. A complicated cut is not necessary.

The OM2000+ is in this class with only 24kg, the lightest tube amplifier from commercial production. Furthermore, the OM2000+ operates on 6m with full power.
