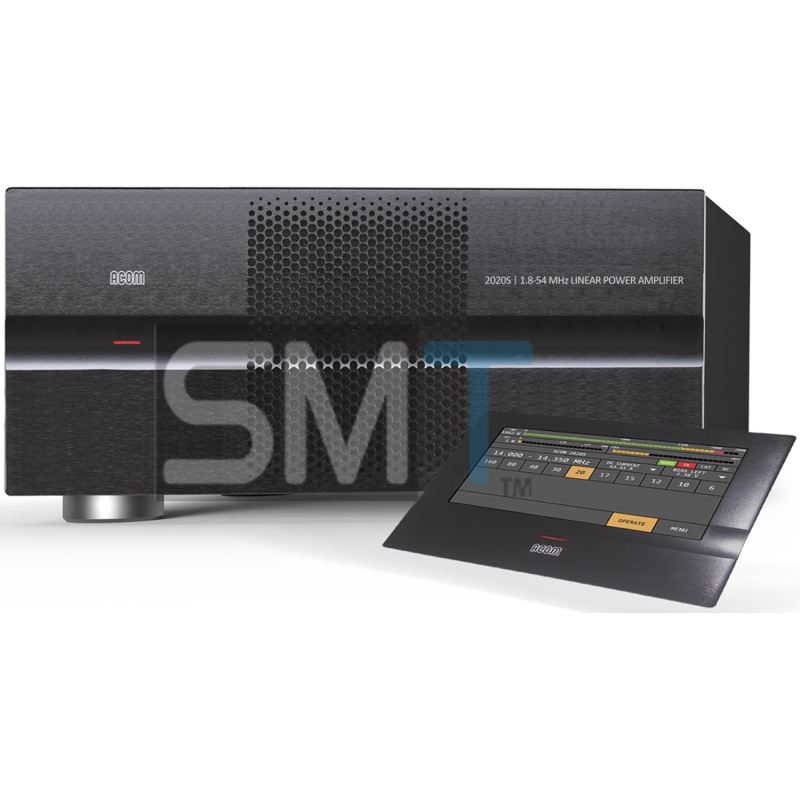

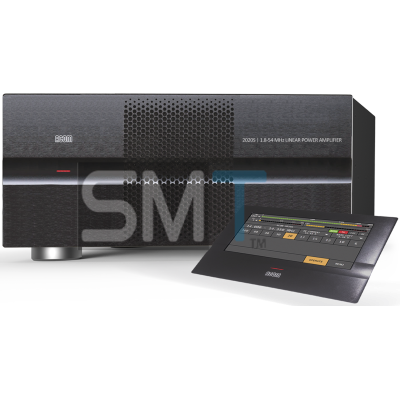

Acom 2020S linear power amplifier 1500 w.

The ACOM 2020S is a state-of-the-art heavy-duty 1500W solid-state linear amplifier, covering all amateur bands from 1.8 to 54 MHz.

The amplifier employs two powerful modules in the power splitting/combining technique which is well proven in commercial high power applications to provide sufficient output headroom. By isolating the input and output ports from each other, intermodulation is reduced and SWR toughness, self-excitation resistance and reliability are improved.

ACOM 2020S is equipped with a model R05 remote control unit with operational information displayed on a high-resolution multifunctional color touch screen. All indicators and controls are accessible via the RCU touch screen, as well as all command inputs to the RCU are menu driven.

As standard, the ACOM 2020S is equipped with an Ethernet interface which facilitates its use in remote-controlled stations.
