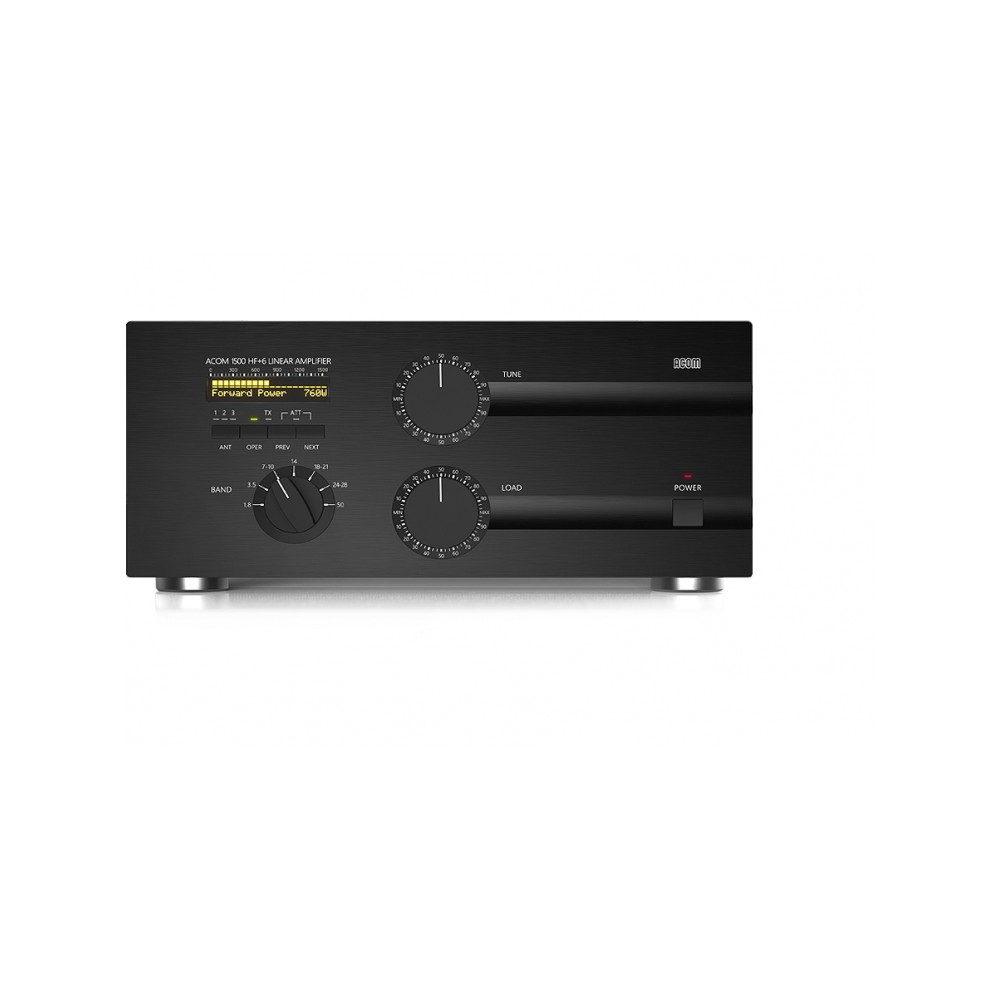

The ACOM 1500 gives you the possibility of easily having 1500 watts of output on all amateur bands from 160 to 6 meters.

Technical Characteristics
Frequency coverage: All amateur bands in the 1.8-54.7 MHz range, extensions or variations on request.
Output power: 1200 watts continuous and 1500 W PEP or with continuous carrier, no operating mode limit.
Intermodulation products: better than -35 dB compared to nominal output level.
Power frequency hum and noise: better than - 40 dB over nominal output level
Output harmonic suppression: 1.8-29.7MHz - better than 50dB over nominal output level; 50-54MHz - 66dB better than nominal output level.

Input and output impedance: nominal value: 50 Ohm unbalanced, UHF type connector (SO239)
Connector: UHF type (SO239).
Input circuit: wide band, VSWR less than 1.3:1, over the entire 1.8-54MHz range (no tuning or switching required)
VSWR less than 1.3:1 over the entire 1.8-54MHz range (no tuning or switching required).
Bypass path with VSWR less than 1.1:1, over the entire range 1.8-54MHz
Output impedance matching capability (antenna): with VSWR up to 3:1 or more.
RF Gain: 11dB typical, frequency response less than 1dB variation (50 to 70W drive power for rated output power).


Antenna switch: 3 antennas  selectable from the front panel
Valve: Single valve Single 4CX1000
New display.

ITALY WARRANTY
