Mat M200 Automatic Antenna tuner for ICOM and Kenwood 200 Watt

Mat M200 Automatic antenna tuner for ICOM and Kenwood 200 Watt (SSB) or 100 Watt in digital mode (e.g. FT8, CW, RTTY). With a frequency range from 1.8 to 54 MHz, it adapts to almost all the antennas fueled coaxially - dipoli, vertical or Yagi - and guarantees an efficient transmission of the signal even with difficult impedances. {

The operation is very simple: the tuner is powered and controlled by the transceiver via the Mat-Ci cable supplied (for ICOM) or the optional Mat -ck cable (for Kenwood). There are no separate checks: the control takes place directly through the [TUNE] or [AT] button of the transceiver. The tuning process is fast: maximum 5 seconds for complete tuning, only 0.1 seconds for stored settings, supported by 16,000 memory positions. {

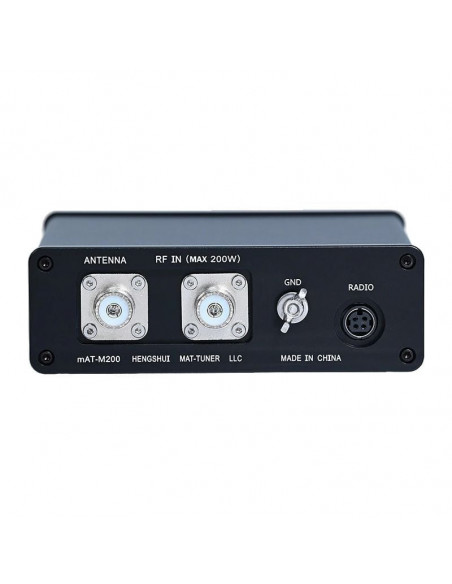

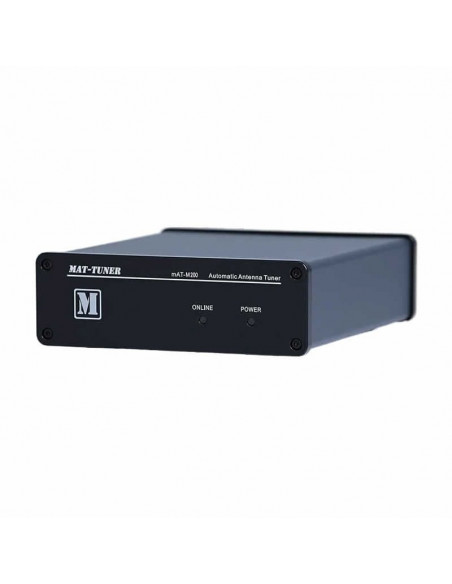

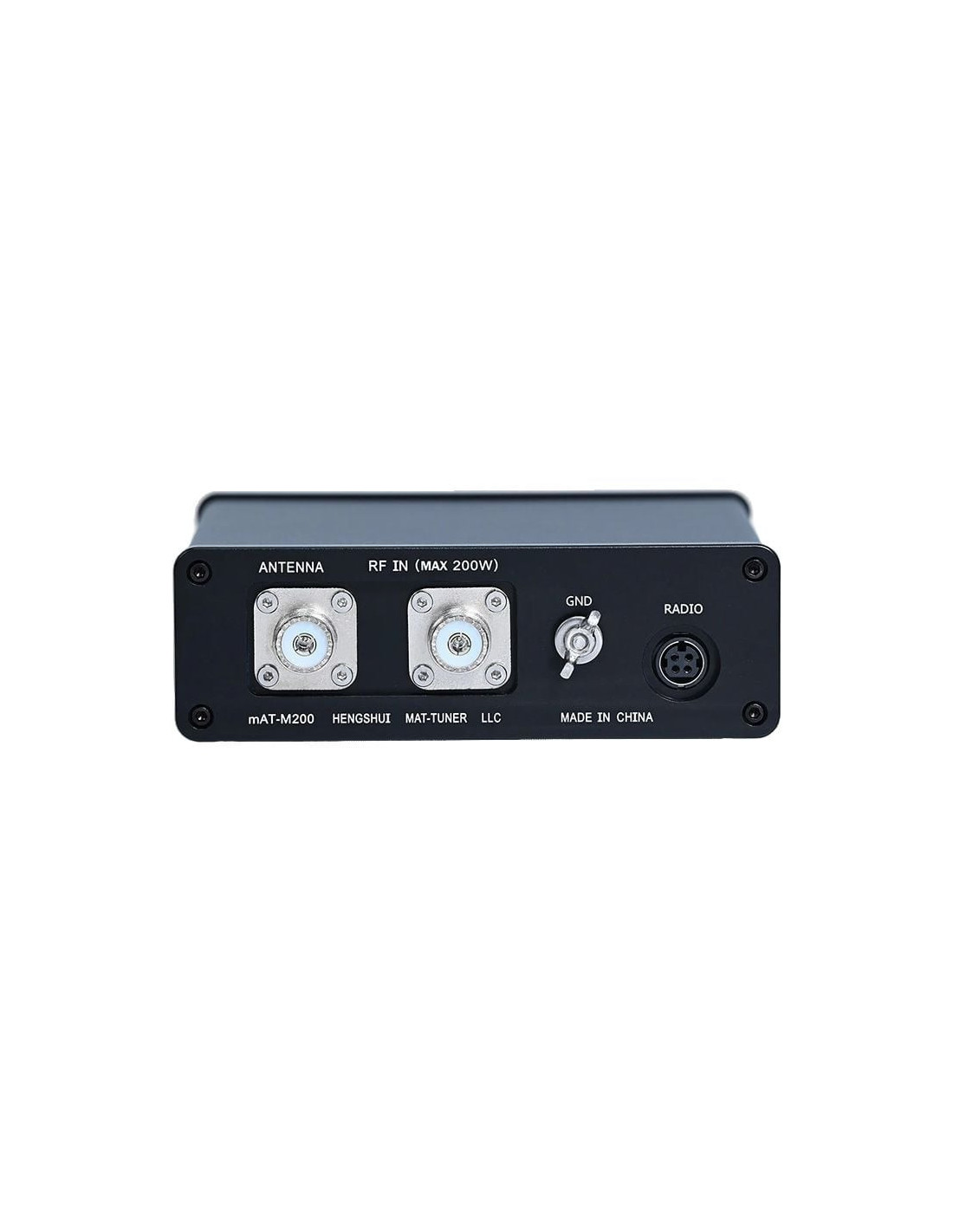

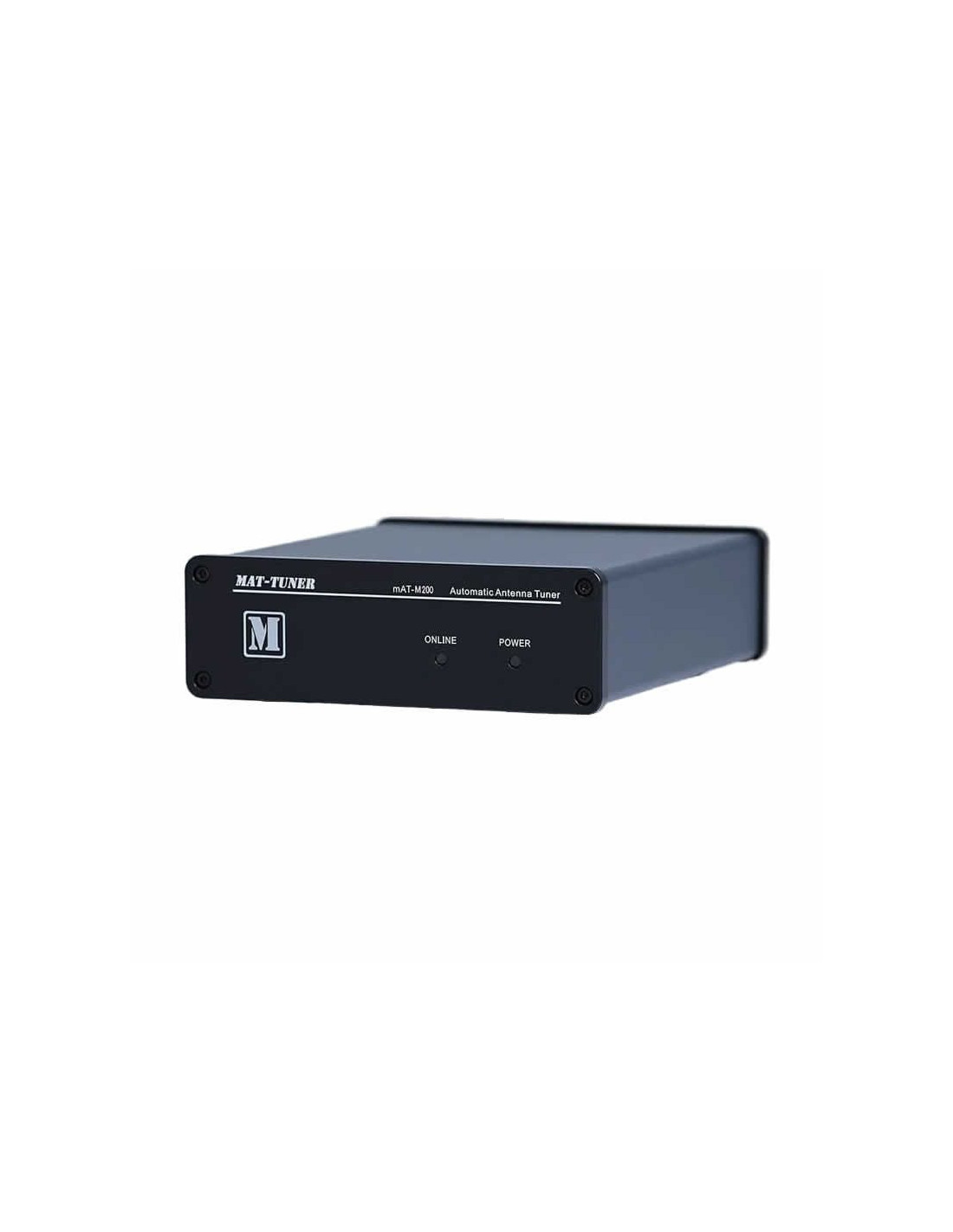

with dimensions of 180 x 142 x 51 mm and a weight of 830 g, the Mat -M200 is compact and robust, suitable for temperatures from -10 ° C to +60 ° C -perfect for internal use or for protected external applications such as the Field Days. Two LEDs indicate the state: "online" for operation or bypass, "power" for nutrition. The connections are clearly structured: "RF in" (SO-239) for the transceiver, "Antenna" (SO-239) for the antenna, "Radio" (taken to 4 pin) for the control cable and "GND" for a grounding that increases safety and performance. {

The tuner is compatible with ICOM (100 Watt) transceivers that support Ah-3 or Ah-4, for example IC-706, 703, 718, 7000, 7100, 7200, 7300, 7410, 746, 756, 7600 series, as well as with Kenwood devices (100 watts), compatible with AT-300, as TRC-80, TK-80, TS-200, 50, 450, 480sat (except HX), 570, 590, 850, 870, 990. The oldest models such as TS-430 or TS-440 are not supported. IMPORTANT: the tuner requires a 4 -pin tuner socket for ICOM or a 6 -pin socket for Kenwood. {

The Mat-M200 is ideal for those looking for a reliable tuner for ICOM or Kenwood transmitters, also in digital mode. It offers precise tuning and solid quality. {

technical characteristics:

frequency range: 1.8-54 MHz

Maximum power: 200 W (SSB), 100 W (digital mode)

Tunnel: 5 sec. (Full), 0.1 sec. (Memory)

Compatibility: ICOM & AMP; Kenwood

With the Mat-M200 the transmission of the signal becomes more efficient:A reliable partner for your station, be it fixed, mobile or portable.
