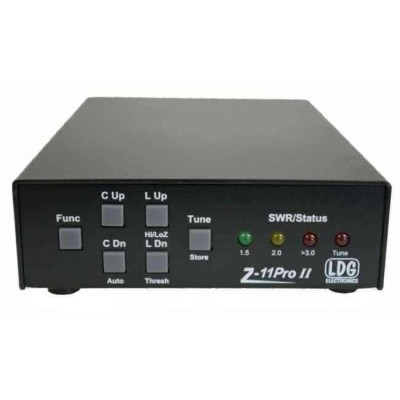

LDG Z11 Proii Automatic tuner QRP

{ Features

• {
• { from 0.1 to 125 Watt with power range (SSB and CW), 100W on 6m {

• {
• Easy LED display to read for the SWR and the status {

• {
• 8000 3-D Memoirs for the instantaneous band switching {

• {
• Tuning time: from 0.1 to 6 seconds full tune, 0.1 seconds for memory tuning {

• {
• parameters selectable by the user: car/seeds, threshold, and many others {

• {
• Cover from 1.8 to 54.0 MHz. BUILT-IN frequency sensor. { {

• {
• touches loads from 6 to 1000 Ω (from 16 to 150 on 6m), from 6 to 4000 Ωs with the optional Balun 4: 1 {

• {
• for diopoli, vertical, vs, directives or / and antennas powered in co -axial {

• {
• The optional external Balun allows the antennas agreement of random, long wire or ladder line {

• {
• {003 003} Required power: from 8 to 16 volts dc to 300 but max. 25 ua the standby current {

• container for batteries (not supplied) {

• {
• small container: 7.7 x 5.0 x 1.5. Weight: 1.5 pounds {

• {
• manual attention in German and English {

The Z-1PRO-II uses the network in accordance with Switched-L controlled to the Microprocessor of the State of the art of the LDG. It grants dipoli, vertical, inverted-vs or potentially any coaxial antenna. With an optional Balun of the LDG, it can also grant Longwires or Ladder-Line type antennas. {

The Z-1PR-II has 8,000 memories in an exclusive array of the "3-D Memory" LDG,which automatically stores the configurations in agreement for each frequency and bandwidth, for each of the 4 antennas. The frequency sensor circuit allows the Z-1PRO-II to know your operating band and the relative frequency. All that transmits or you are close to a frequency that you have used previously, the Z-1PR-II reigns from the memory almost instantly (also in SSB!). Memoirs are stored indefinitely.

easy to read leds show the values ​​of the SWR and the state. The Z-1PRO-II USA relays which maintain the configuration of the agreement even in the absence of power; The current in the absence of workers in agreement is actually zero.

for maximum flexibility the user can choose many battery options; internal or external. On the PC plate there are some courses of welding to be able to install a battery pack (not included). Use 6 AAS and keep many years of operation. If, on the other hand, only one 9v battery will be enough for you

the frontal control panel is very simple; Press the Tune button while you are broadcasting, and the Z-1PR-II will begin the agreement cycle. The Z-1PR-II will also agree while you are talking in AM or SSB. Although not included, prechiere interfaces are available for the ICOM, Kenwood, Yaesu and Alinco transcneivers. With the interface, the pressure of a single button operates the transmission of the carrier, the agreement cycle and then reports the radio to its original situation.
