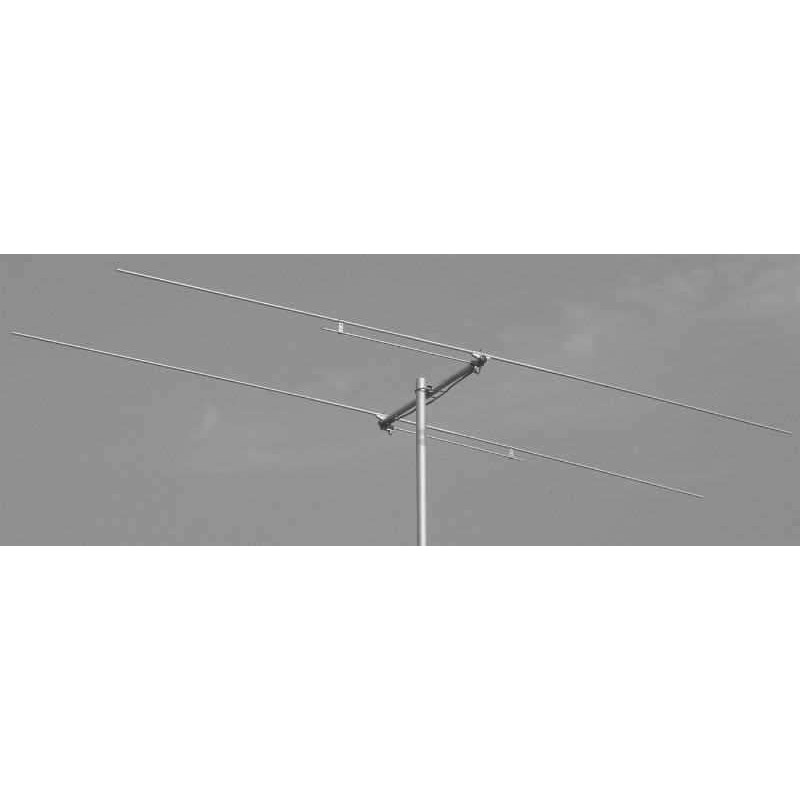

DIAMOND HB9CV/ A 502HBR 2 element directive antenna for 6 metres
- Write a review
€101.76
2-element HB9CV antenna for 6m of the DIAMOND, compact and high gain.
| Model: A-502HBR/HB9CV | |
|---|---|
| Frequency range: | 50-53 MHz |
| Connector: | PL connector |
| Max. power (PEP SSB): | 400 Watts |
| Bandwidth: | approx.2 MHz (SWR < 1.5:1) |
| Max. wind speed: | 144 km/h |
| Mast Diameter: | 25...56 mm |
| Elements: | 2 |
| Earnings: | 6.3 dBi |
| Front/Back ratio: | >15 dB |
| angle at 3dB : | <70 Degrees |
| Boom Length: | 0.8 m |
| Length of the max. element: | 3 m |
| Windward Surface: | 0.14 qm |
| Radius of rotation: | 1600 mm |
| Weight: | 1.7 Kg |
11570
Data sheet
- MPN
- 7438641839230
- Sku
- 11570
New
