Alexloop Hampack ancestive loop antenna from 10 to 40 mt
{new Alexloop Hampack version! {
{* New design of the Tuning unit
{* Alextune incorporated in the Tuning unit
{* including the backpack with two internal pockets (radio, accessories)
Click here for Wilfried DL2YAJ

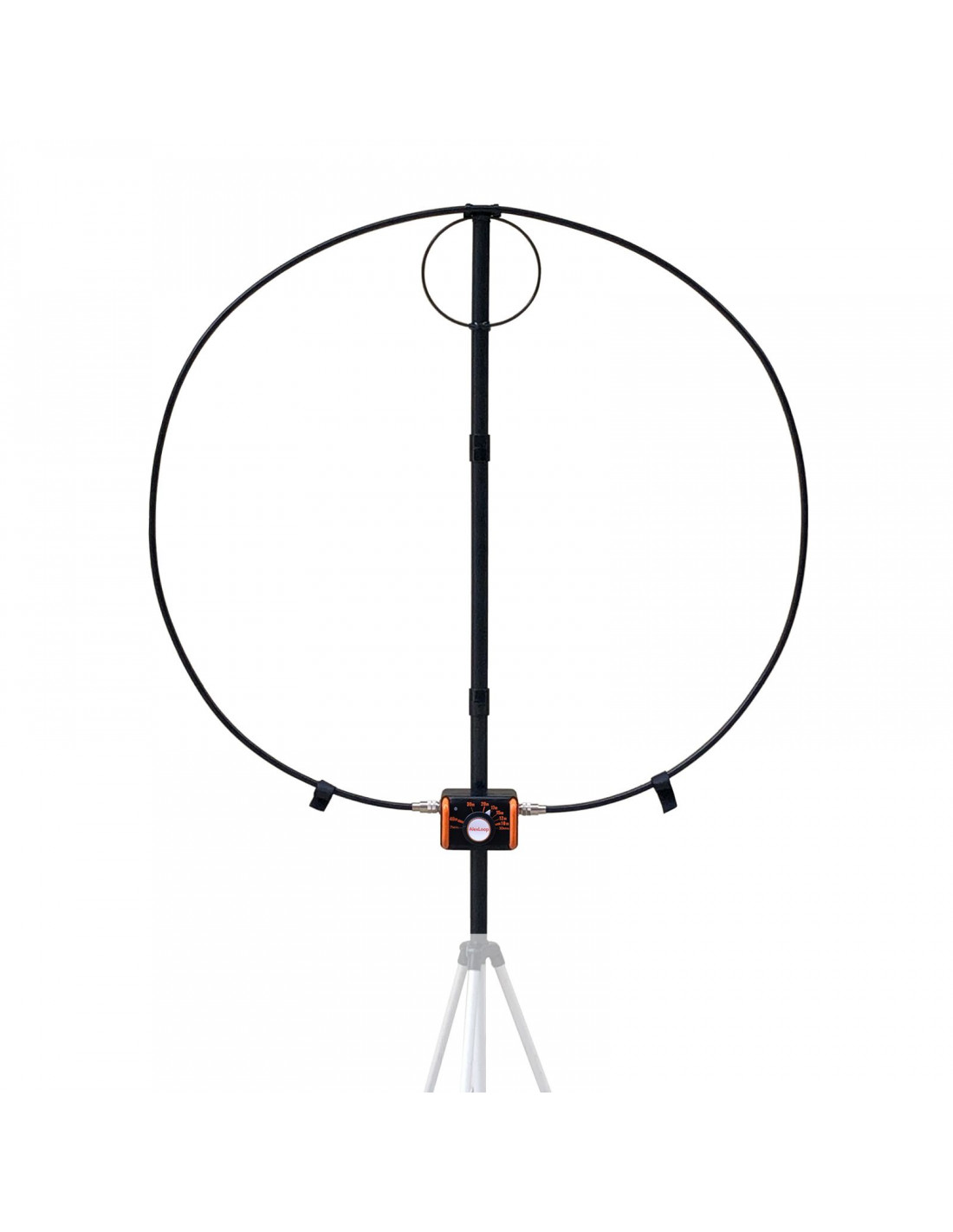

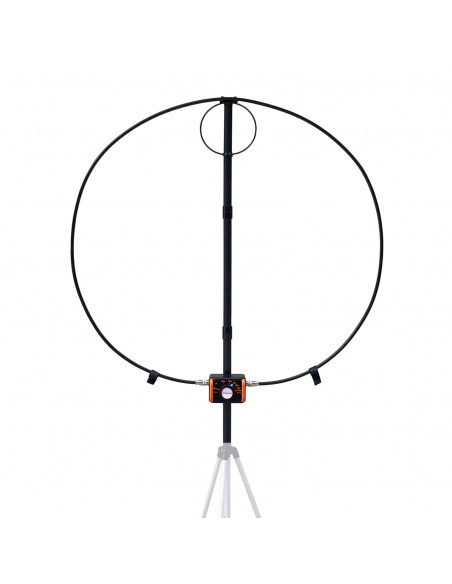

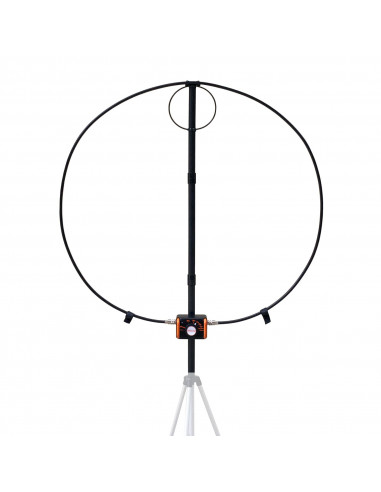

test report {The Alexloop Hampack is a small and light portable loop for 7-30 MHz for radio amateurs with space problems or on the road on vacation or excursions. This ultralight loop is mounted in a few steps without tools and is easily agreed through the tuner (tuning unit) incorporated into the base, the radio tool serves as a SWR meter. {
incorporated into the tuning unit is the display with a LED, previously available separately as "alexune". Due to an inductive coupling, part of the energy is given to the LED when it is tuned exactly on the transmission frequency, and the LED lights up. This allows accurate tuning without having to look at the radio (S-Meter). {
{Like any loop antenna, the Alexloop is very narrow and insensitive to the band's signals, so it works as a pre -selected. The antenna is completely independent of radials or ground conditions and can be installed everywhere at any time, for example on a camping chair: keep and tune the antenna with your left hand, operate the radio with the right. The characteristic nulls of the loop are very useful for fading the QRM. To keep the loop very critical resistance low, the connectors are designed as solid -plated PL connectors. {
All parts are equipped with a coaxial cable of 2.6 m pre -assembled in a new backpack, including two separate packaging bags for radio and other accessories. The weight of the antenna is not 1300 grams. The connection cable is equipped with an PL connector, so you can start immediately after removing packaging. {
{
- Potenza 10W FM/AM, 25W SSB
{- Coaxial cable of 2.6 m, ready to be connected

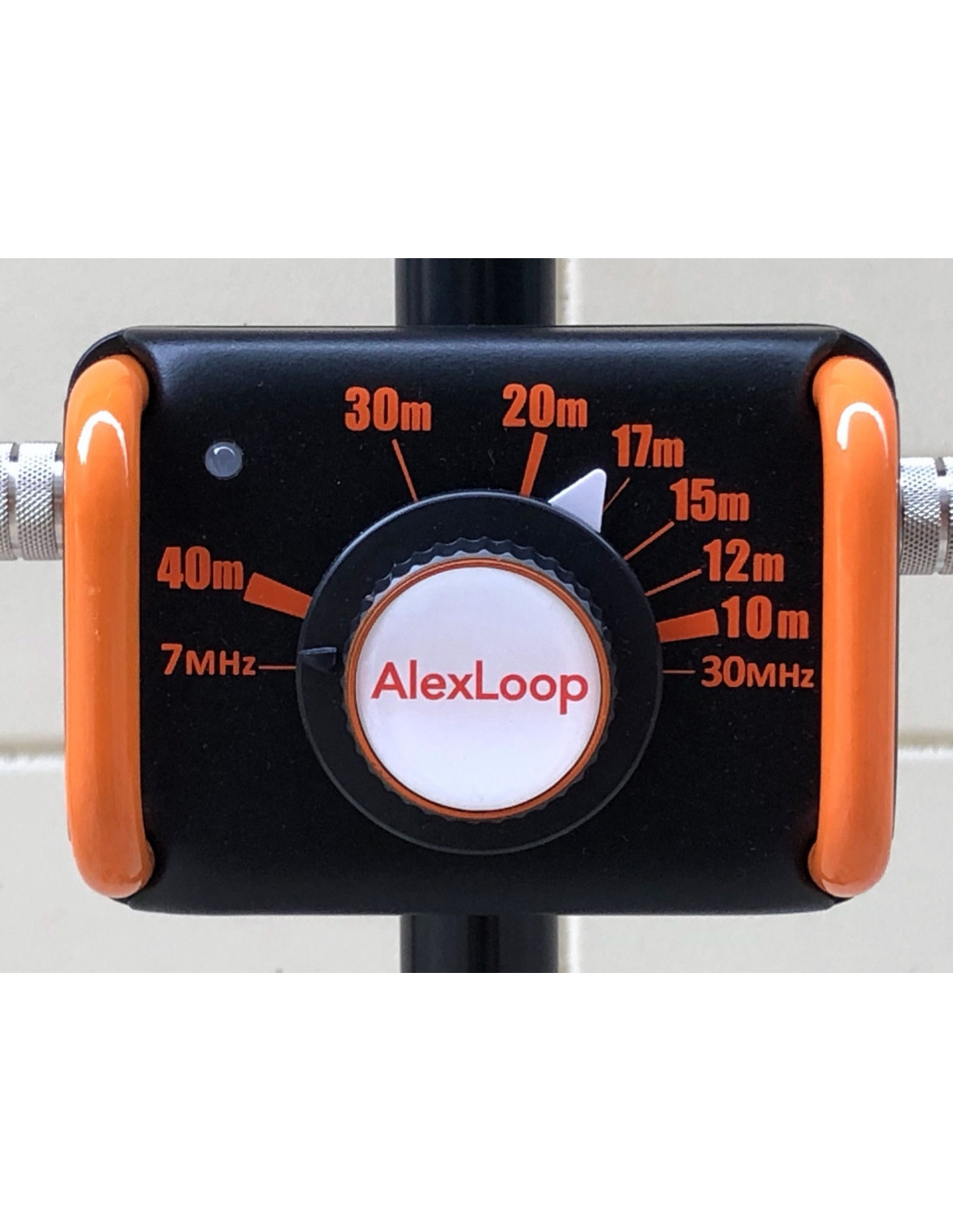

{- Manual tuner incorporated in the base
- Alextune LED display incorporated in the pairing
{technical data
{| model | Alexloop Hampack |
|---|---|
| ENROYCE FEEDER (Ω) | 50 |
| mono-/multiband | Multibanda |
| Number of Turns | 1.0000 |
| brand | Alexloop |
| Supported band | 40m, 30m, 20m, 17m, 15m, 12m, 10m |
| ring diameter | 1m |
| Weight | 1.3 kg |
| Mass. [W] | 25 W |
| frequencies | 7 - 30 MHz |
| polarization | vertical |
| type of antenna | omnidirectional antenna |
| Design of the antenna | magnetic loop |
| Documentation Languages | en |
Content of the package:

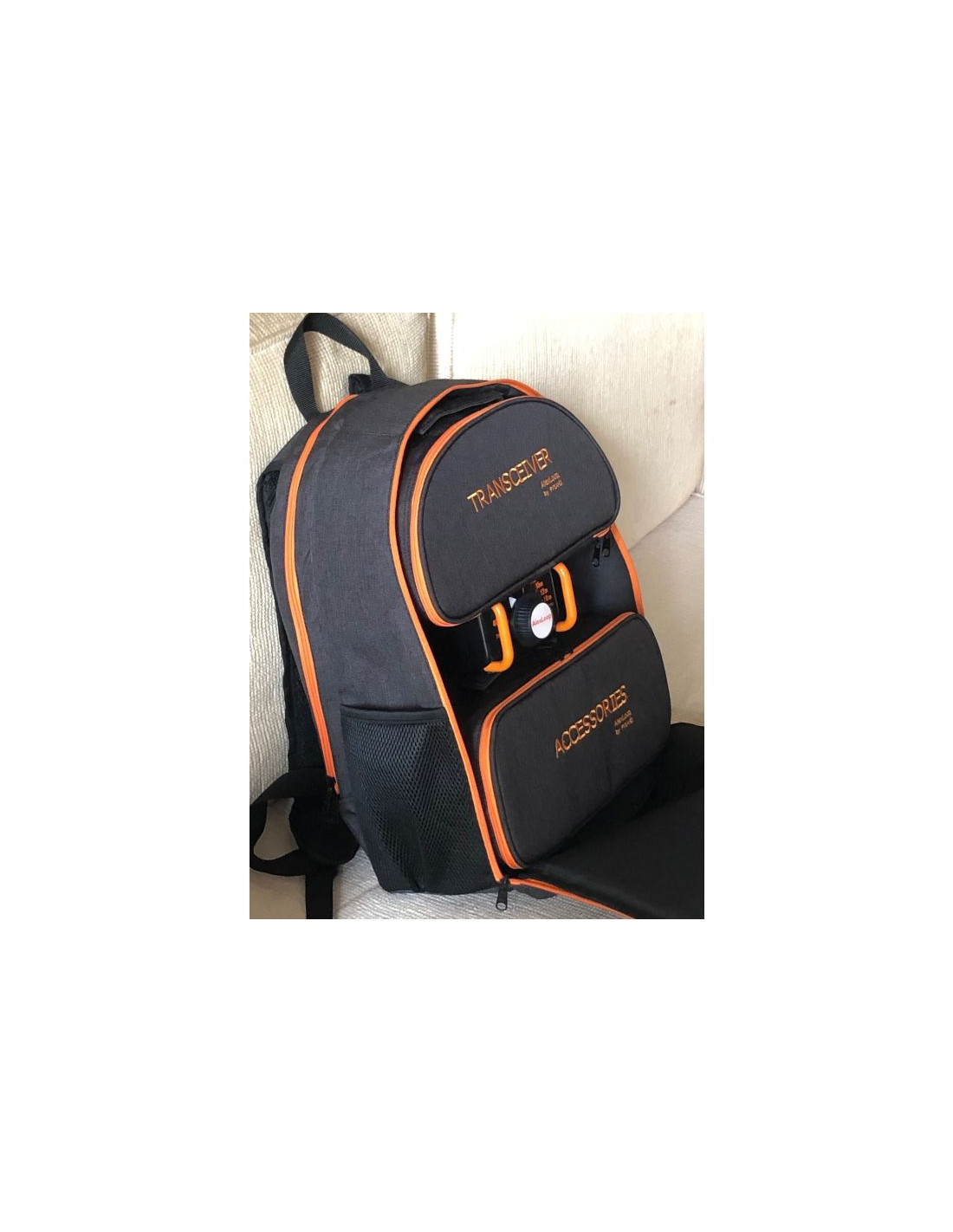

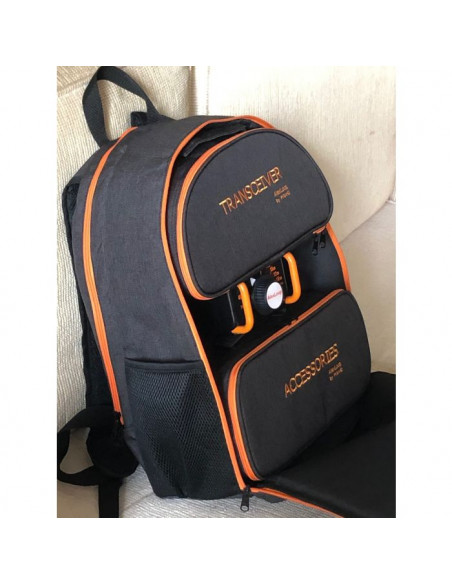

- backpack with two internal pockets (radio, accessories)
- manual tuner {
- Coaxial cable of 2.6 m premontate
