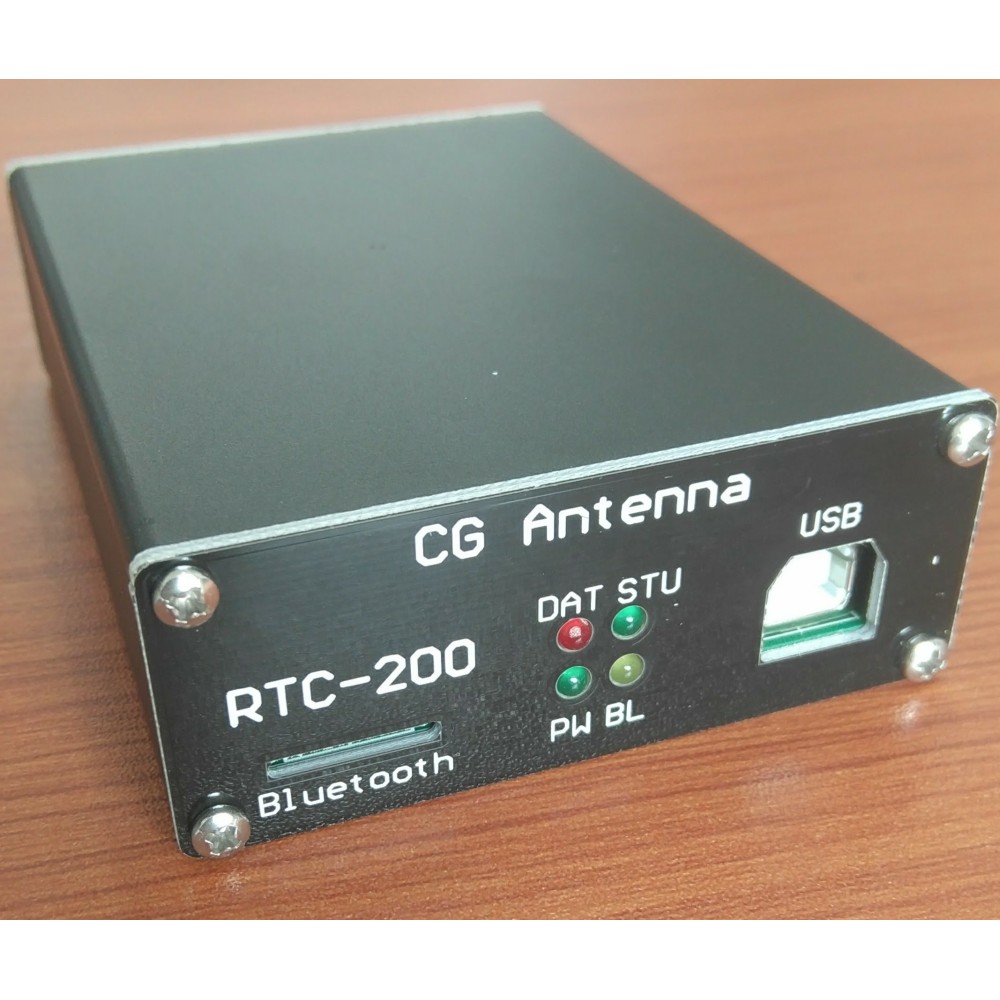

CG-antenna RTC-200 interface for Yaesu rotors

{

RTC-200 is a compact interface to connect Yaesu rotors compatible to a computer. You can use all Yaesu rotors with 6 -pin EXT minidins. 'Control' connector, a suitable cable is included. The RTC-200 simultaneously offers two-speed connections to support satellite antenna systems with azimut engines and elevation. Towards the computer, the interface is connected via USB, a cable is included. {

{

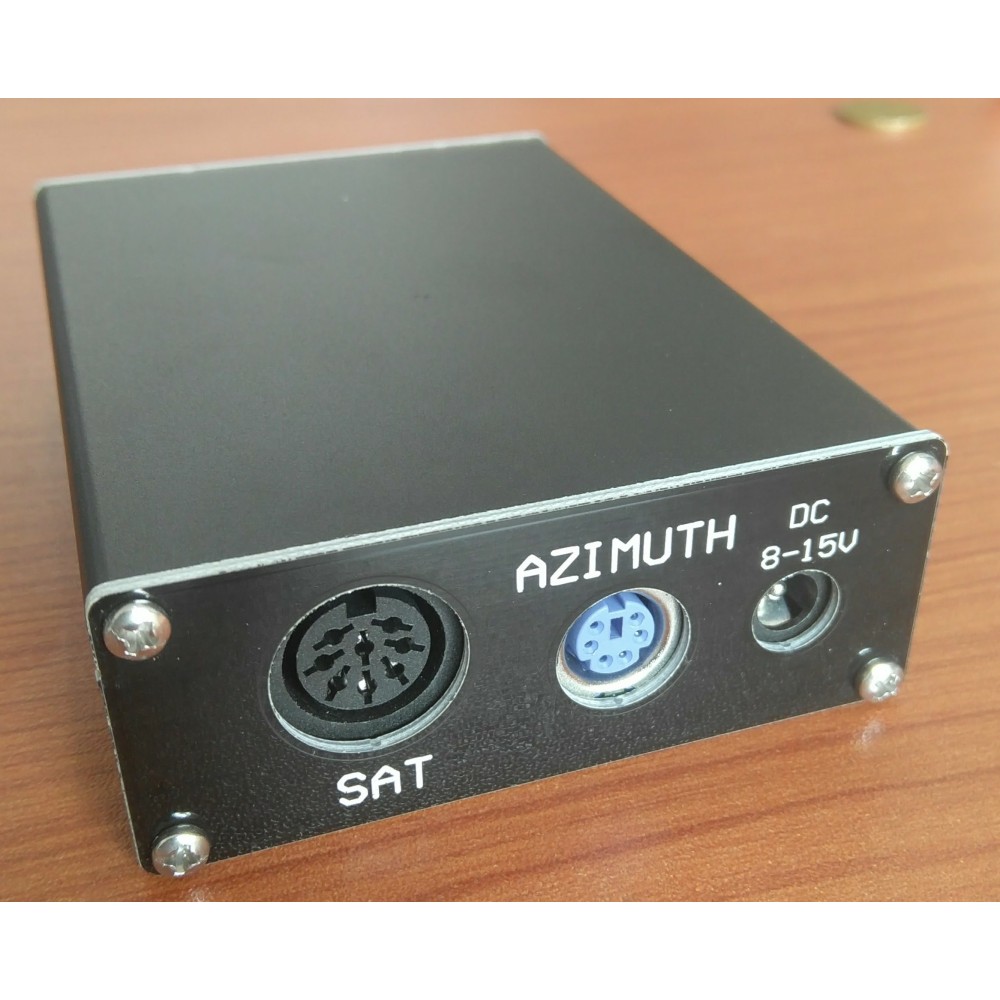

The RTC-200 interface uses the Yaesu rotor control protocol, just like the GS-232A / GS-232B interface of Yaesu. This makes this interface compatible with almost all rotor control programs on the market. The interface requires a supply voltage from 8 to 15 V DC, a cable is included. {

{

for installation it is necessary to download a driver from the manufacturer's website. This download also includes a small rotor control application (only for Windows). Download the address www.cgantenna.be/rtc200/rtc200.zip . Contrary to the description in the English manual, the product is no longer supplied with a cd. {

{

• {
• List of supported Yaesu rotors
• G-800DXA {
• G-1000DXA {
• G-2800DXA {
• G-5500
• All other models with an EXT. Control socket

{

What happens if my rotor does not have the 'Ext., Control'? In the East. Checking taking of a Yaesu rotor (except G-5500) are simply the signals of the three 'left rotation' buttons, 'Right rotation' and (if available) 'brake release', as well as the analog signal 'direction' and obviously "soil". This socket could be retraphate relatively easily to other rotors, even to those of other producers. {

{

• {

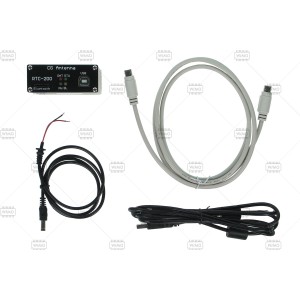

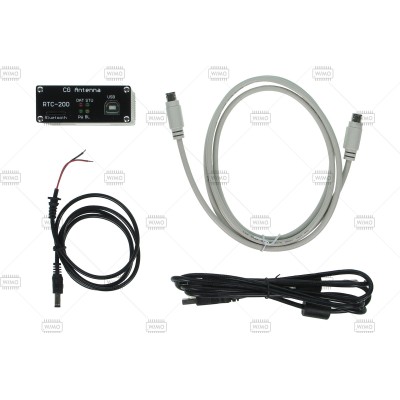

• Delivery volume
• RTC-200 interface {
• USB A / B cable, 150 cm {
• Minidin Cable 6P Minidin / 6p, 150 cm {
• CC cable with cylindrical connector, 100 cm
• printed manual, English
