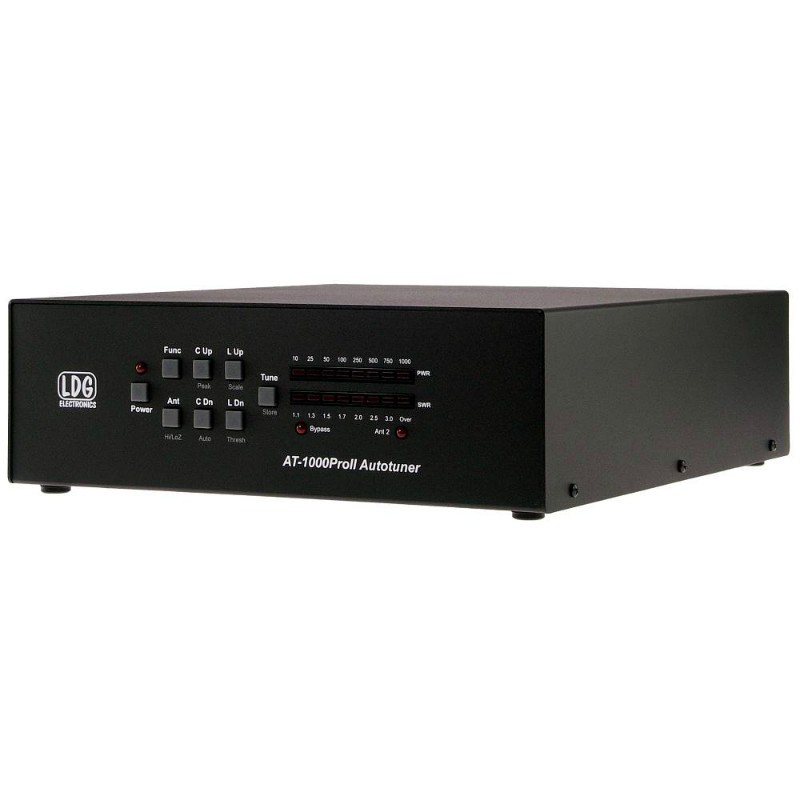

LDG AT 1000 PRO 2 Automatic tuner 1000 Watt

{

Automatic antenna tuner for powers up to 1000w! Controlled by a microprocessor, it analyzes the SWR, and a mesh in l tunts faster than any other manual method. Usually coupled SWR values ​​from 10: 1 up to 1.5: 1 within 3 seconds. Once the agreement has been found, it stores the data in memory, thus being faster the next time operating on the same frequency. The 'Led Bargraph' tool shows power and switch. The agreement is made in low power, never while the PA is in operation! {

To offer the same ease of use as the other LDG tunnels, compared to the predecessors the AT-1000PRO2 offers the following improvements:

{

• {
• two selectable antennas

{

• {
• { 2000 Memoirs for each antenna

{

• {
• dedicated keys for the end of the end of manual

{

technical data

{

• {
• 1000 Watt Max. Power

{

• {
• network Switched l

{

• {
• agreement time from 0.1 to 4 seconds, 3 seconds of average

{

• {
• required power: from 11 to 15vdc, max. 1A

{

• {
• two asymmetrical antenna connector (PL), for symmetrical antennas use a Balun 1: 4

{

• {
• frequency range from 1.8 to 54 MHz, impedance from 6 to 1000 Ω (6m: 6 - 150 Ω

{

• {
• power range: from 20 to 1000W SSB, 750W CW, 500w digital, 100W in 6m

{

• {
• Suitable for dipoli, vertical, inverted V etc. {

{

• {
• dimensions: 33 x 23 x 8cm, weight ca. 3 kg

{

manual attention in German and English
