grazioli fe6v vertical antenna 5/8 from 50 to 54mHz power 2kw. {
{This omnidirectional antenna with a wavelength of 5/8 λ is characterized by the use of high quality and durable materials and a high resilience. The resistant AW6063-T66 aluminum alloy is used for the tubes and radials of the elements, made with particular precision. {
{The details also show that the manufacturer is beating new roads instead of relying on standard solutions: for example, the antenna connector is not a standard SO239 socket, such as that used by most manufacturers, but a component developed and produced by Grazioli herself. This reliable connector has a real characteristic impedance of 50 ohm and is designed for frequencies up to 500 MHz, enduring high levels of continuous RF power. {
{The housing is made of nickelated brass CW614N, while the PIN is 24 -carat gold plated to avoid oxidation and is equipped with a PTFE insulator that maintains its centering and elasticity to avoid contact loss. {
{The entire group is protected by a special elastomer sheath that prevents the entry of water and humidity. {

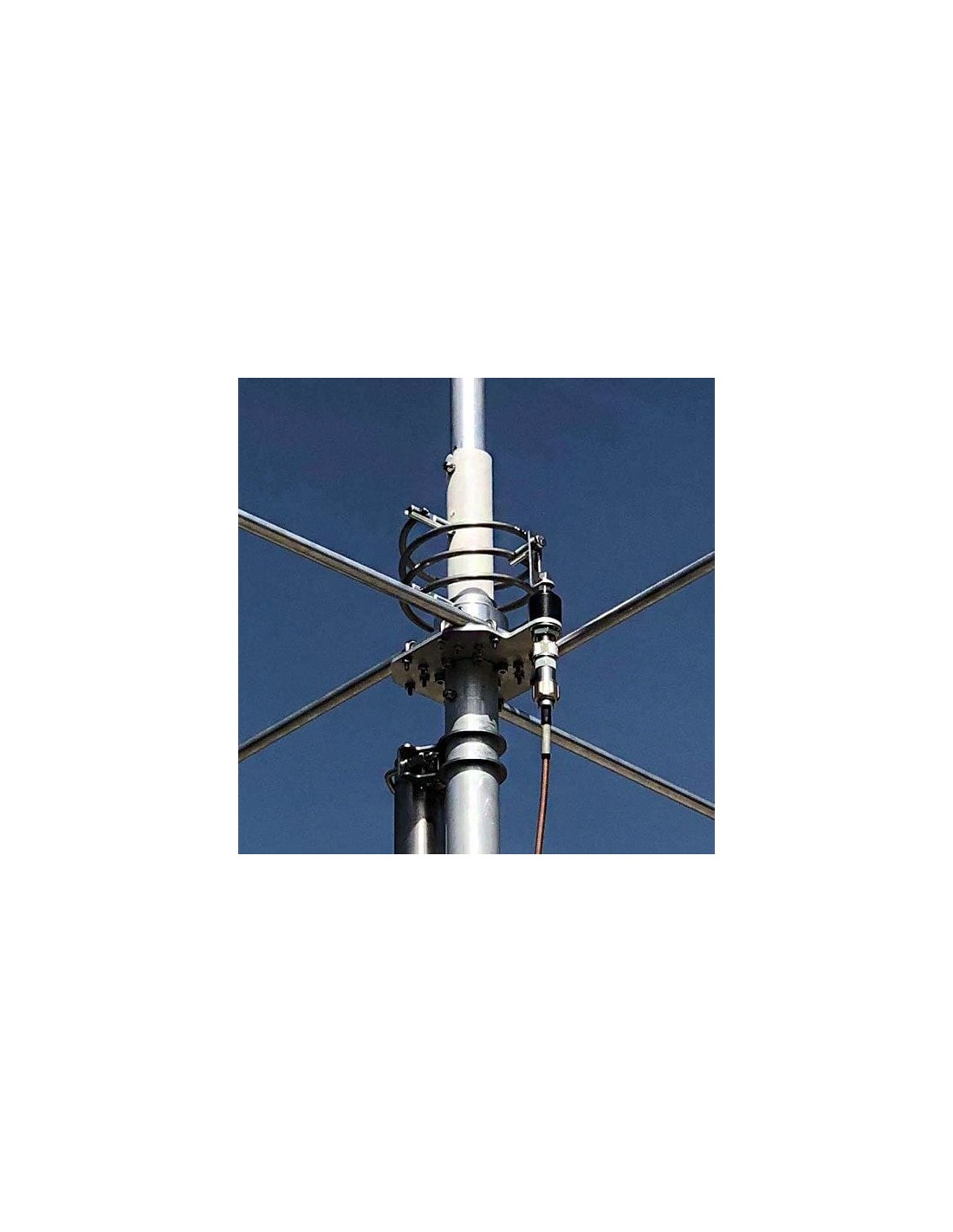

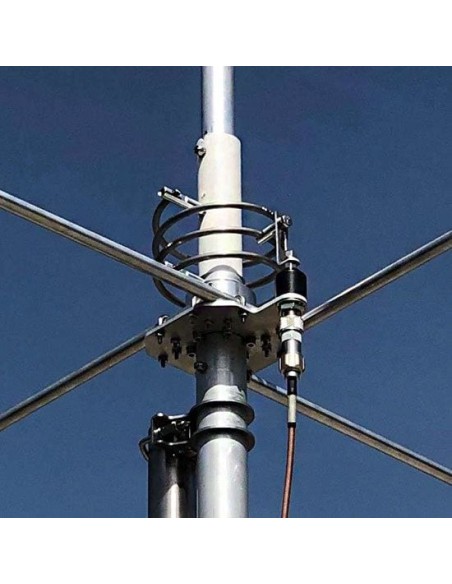

{The High "q"
The coil plays a fundamental role in the adaptation of impedance and in the transmission of the maximum RF power. {
{q, the quality factor, is determined by the length/diameter ratio, by the distance between the turns, the material, the diameter of the wire and the presence or absence of metal nuclei. {
{In a nutshell, the greater the quality factor of the coil, minors are high frequency losses. {
{The "FE" series uses air core of particularly generous dimensions, without metal nuclei and with largely spaced spires, which allow to obtain one of the most technically possible Q's values. {
{this guarantees maximum efficiency and ability to bear high levels of RF power. {
In addition, the coil is directly connected to the ground in continuous current to ensure a significant reduction in atmospheric interference and background noise. {

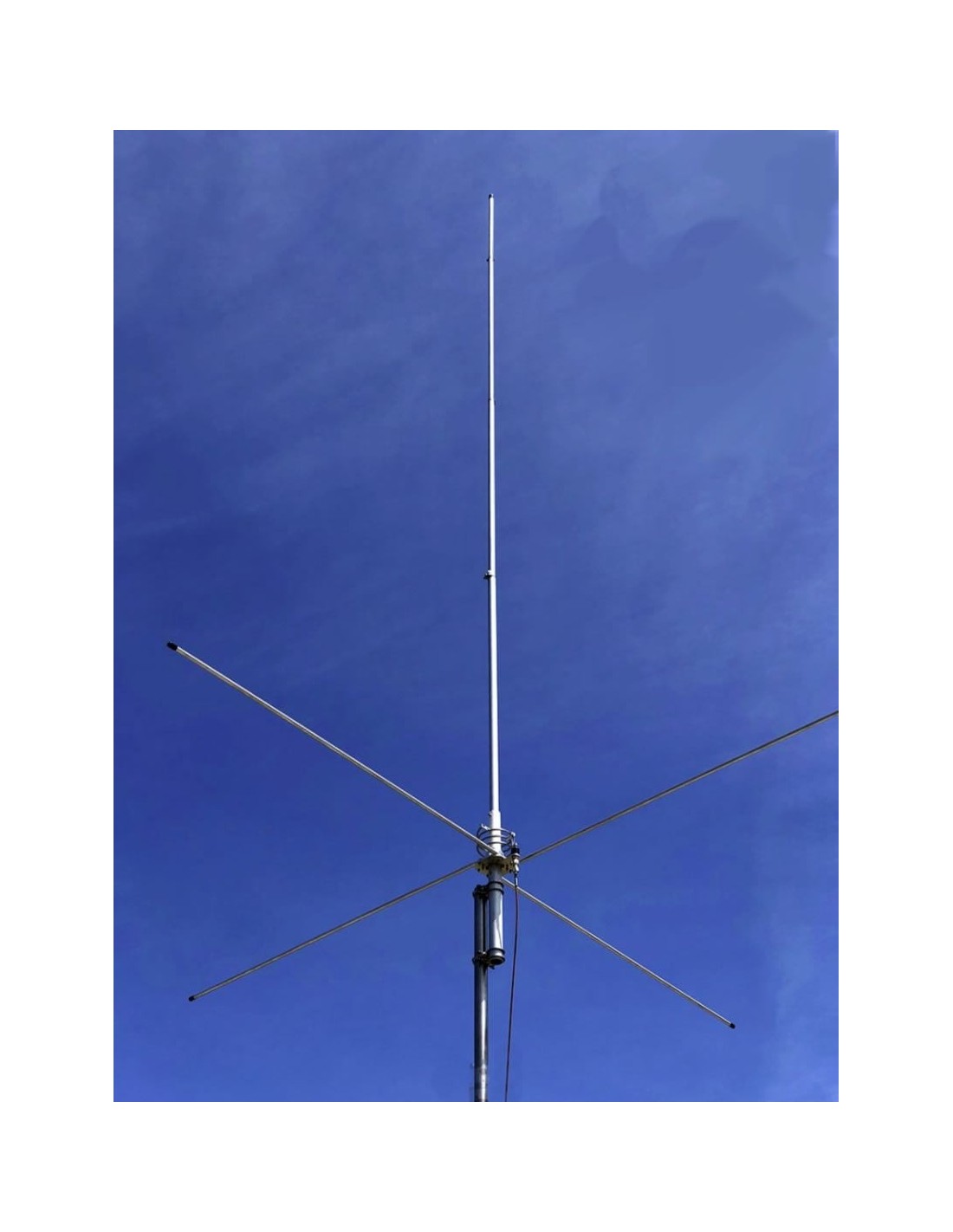

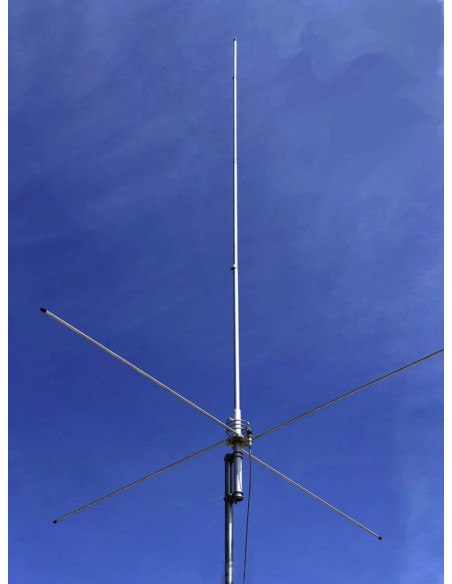

{To obtain the desired "gorund plane" effect, 4 robust radials 1.4 m long radials are used with wavelength of 1/4 λ. {

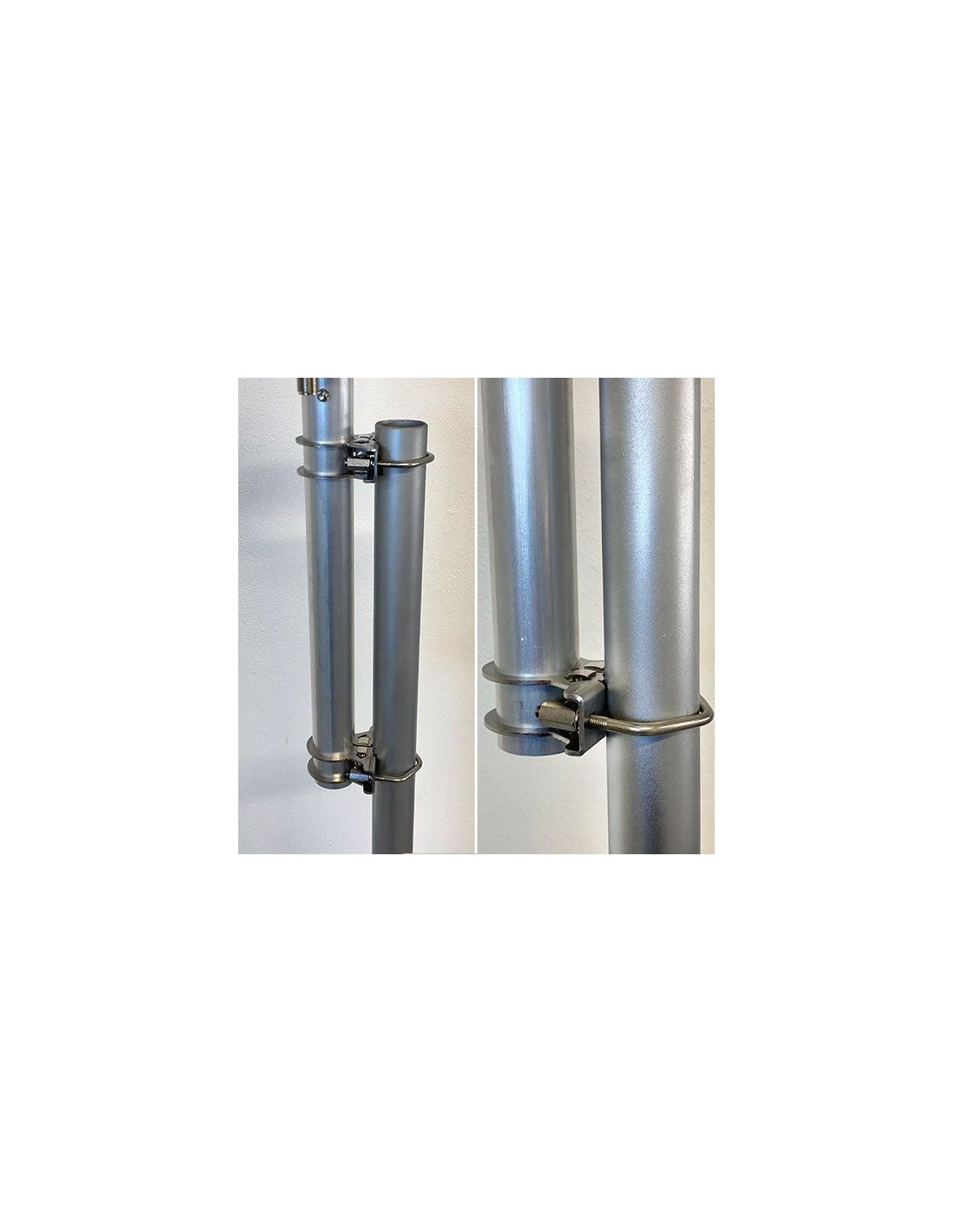

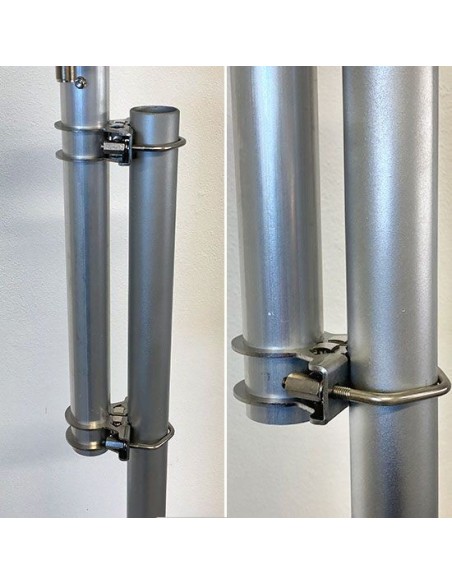

Thanks to the supplied anti -corrosion assembly material, the antenna can be fixed to pylons of diameter between 40 and 54 mm. {
Technical data
{- {
- Product Name fe6v
- mono-/multiband mono band {
- nº. connectors 1 {
- brand grazioli {
- Shipping weight [kg] 4.6 {
- length [m] 4.17 m {
- Supported band 6m {
- impedance [ohm] 50 {
- Weight 3.3 kg {
- Mass. [W] { 2000 W {
- Frequency range 50 - 54 MHz {
- polarization vertical {
- type of antenna omnidirectional antenna {
- Design of the antenna vertical omni {
- maximum diameter of the tree [mm] 54 {
- Connector so-239 {
- gain [dbi] (in free space) 3.65 {
- Earning 50 MHz [dbi] 3.65 {
