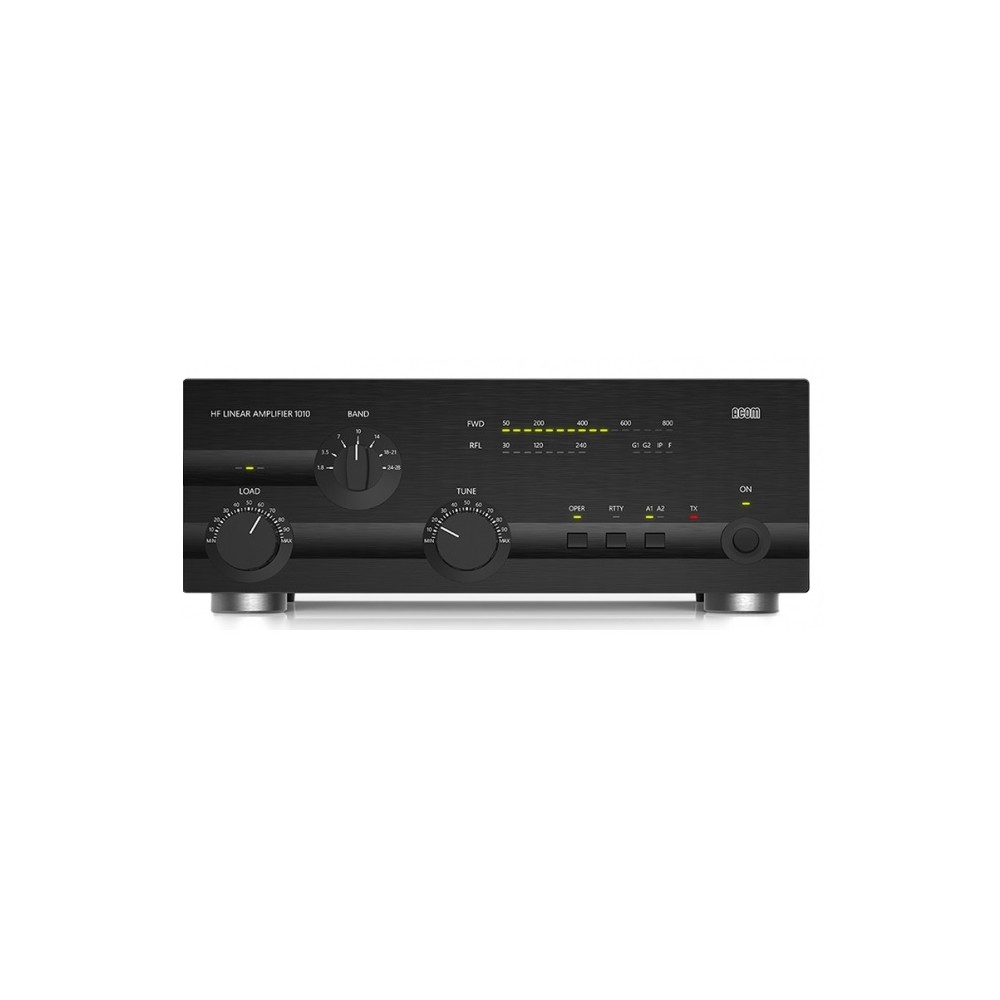

ACOM 1010 HF Linear Amplifier from 1.8 to 29.7 MHz

The ACOM 1010 HF amplifier covers all bands from 1.8 to 29.7 MHz.  They provide over 700W of PEP output (or 500W in continuous mode) with less than 60 watts of drive and operate without special transceiver signals;  only need the "ground to TX" and the required drive.

No external antenna tuner  is required at least as long as the antenna has a VSWR equal to or less than 3:1. The amplifier performs the functions of an antenna tuner, allowing you to quickly change antennas and use a wide spectrum of frequencies.

The upper  LED light bar  always senses the peak incident power while the lower one is for reading the reflected power. LED indicators warn of abnormal operating conditions for grid 1, grid 2, and plate parameters.

Two antenna outputs  are selectable from the front panel of the amplifier.

Antenna matching  can be achieved in less than 10 seconds and at a quarter of the rated output power, so as to reduce the risk of interference with other stations and risks to the safety of the amplifier components itself.

The amplifier does not require any special interface to operate with the transceiver, it only needs the "ground on TX" signal and 60W RF input power to deliver full output power.

A single  Svetlana 4CX800A  (GU74B) valve, high performance ceramic-metal tetrode with a plate dissipation of 600W (forced air cooling, grid driven).

Technical Characteristics

• Frequency coverage: All amateur bands in the 1.8-29.7 MHz range.

• Output power: 700 W PEP or 500 W with continuous carrier.

• Intermodulation products: better than -35 dB compared to nominal output level.

• Power frequency hum and noise:better than -40 dB compared to the nominal output level.

• Output Harmonic Suppression: Better than 50 dB compared to nominal output level.

• Input and output impedance:

• nominal value: 50 Ω unbalanced, UHF type connector (SO239)

• input circuit: wide band, VSWR less than 1.3:1, over the entire 1.8-30MHz range (no tuning or switching required)

• bypass path with VSWR less than 1.1:1, full range 1.8-30MHz, 200W maximum

• output impedance matching capability (antenna): with VSWR up to 3:1 or more.

• RF Gain: 11dB typical, frequency response less than 1dB variation (50 to 70W drive power for rated output power). Mains requirements: 85-132 V/170-264 V ac (100, 110, 120, 200, 210, 220, 230 & 240 V nominal), +10% -15% tol.), 50-60 Hz, single phase, 1200 VA.

• Complies with CE safety and electromagnetic compatibility requirements as well as FCC regulations (10 & 12 m bands blocked).

• Dimensions and weight: WxDxH: 406x315x150mm, 16kg.

• Operating environmental conditions:

• temperature between: 0...+50 ° C

• humidity: up to 95% @ +35 ° C

• altitude: up to 3000m above sea level without derating of output power.
