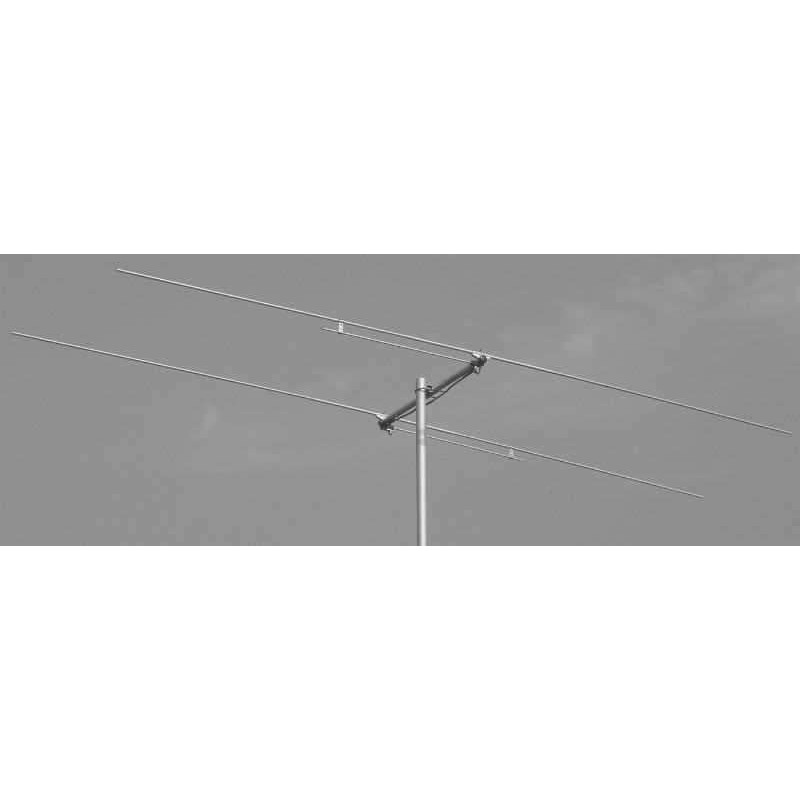

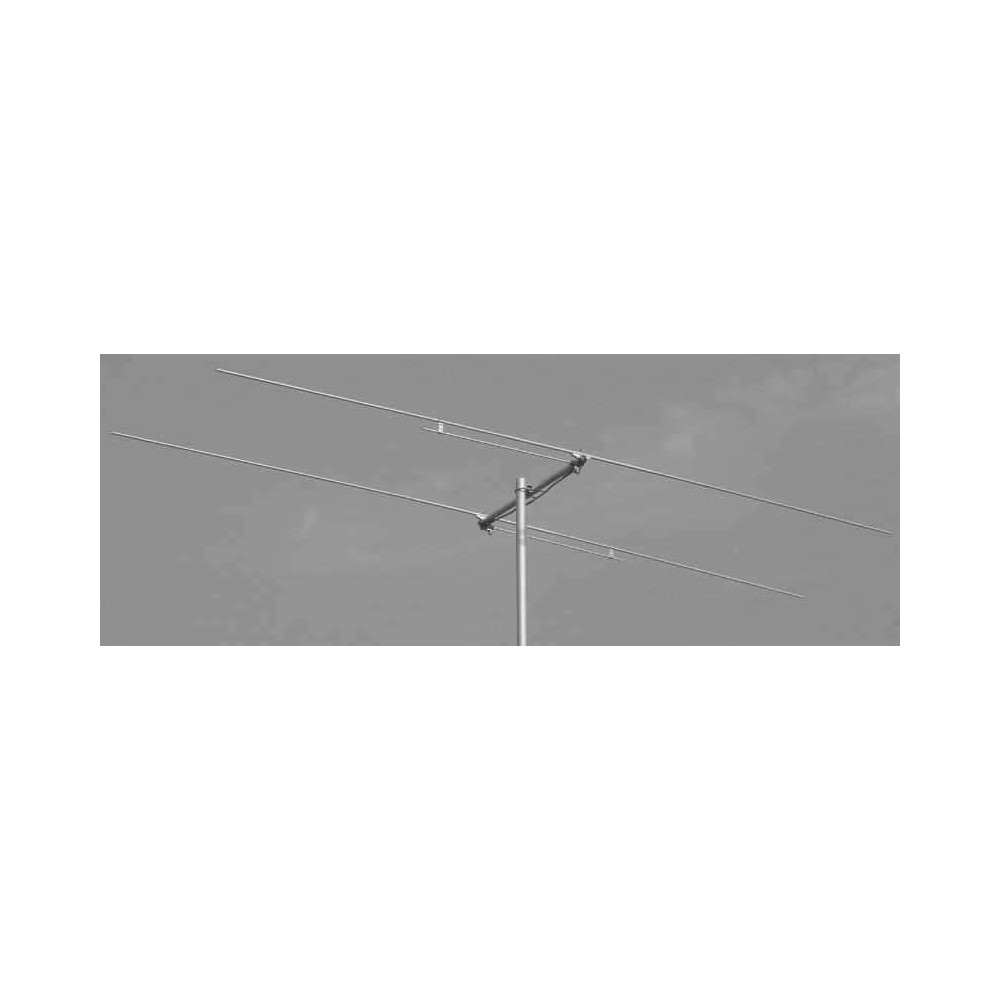

antenna 2 elements HB9cv for the 6m of the Diamond, compact and high gain. {
| Model: A-502HBR/HB9CV | |
|---|---|
| Range frequently: | 50-53 MHz |
| Connector: | PL Connector |
| Max. Potenza (PEP SSB): | 400 Watt |
| bandwidth: | Ca.2 MHz (SWR & LT; 1.5: 1) |
| Max. Vel.del wind: | 144 km/h |
| Mast diameter: | 25 ... 56 mm |
| Elements: | 2 |
| Earnings: | 6.3 dbi |
| Front/Back Ratio: | & GT; 15 db 2 td> |
| 3DB corner: | & LT; 70 degrees |
| Boom length: | 0.8 m 2 td> |
| Max length. Element: | 3 m |
| surface in the wind: | 0.14 qm |
| rotation radius: | 1600 mm |
| Weight: | 1.7 kg |
