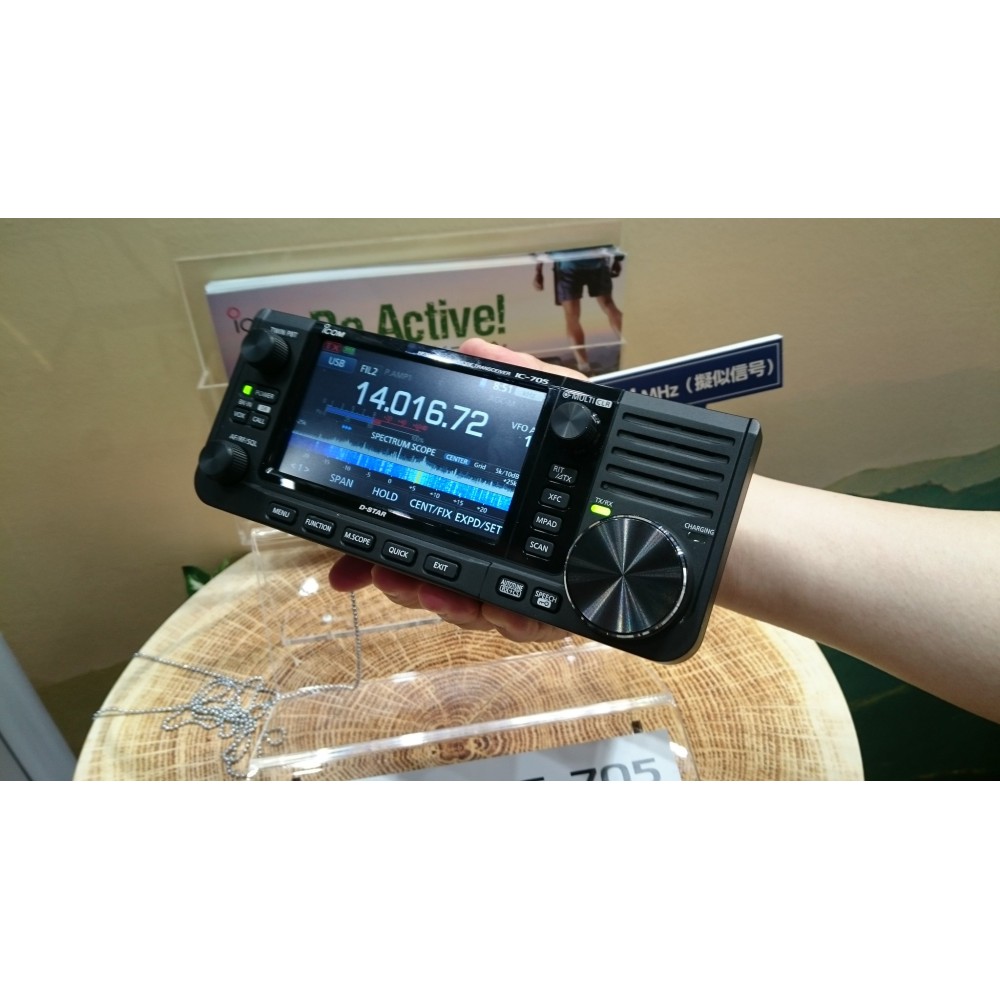

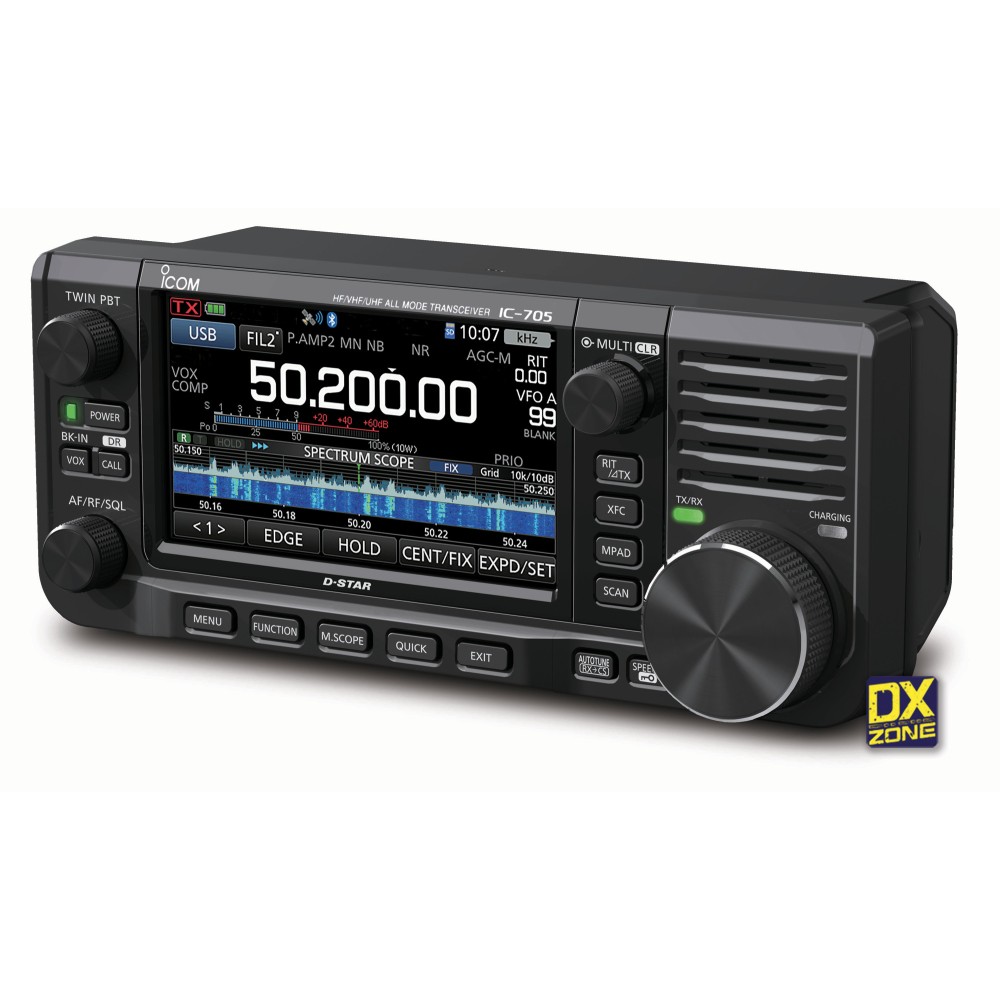

Quadrubanda transceiver for the ICOM IC 705 QRP

{

ICOM IC 705 is a QRP portable transceiver that supports all the operating modes on short wave bands plus 2m and 70cm. D-Star is integrated. {

{

The IC -705 uses the same EDD SDR technology as the IC 7300 and the IC 9700. The color display has the same size as its larger relatives - 4.3 "diagonal. The display acts as input at the same time, is a touch display. Therefore, the entrance of a frequency, the choice of operating mode and the setting in the menu Simple. {

as a portable device, the IC-705 has an integrated liion rechargeable battery. Here the BP-272 battery is used, also used on ICOM portable radio. The battery has a voltage of 7.4 V and a capacity of 2000 mAh. This ensures fun for a few hours in an excursion to the next mountain. The transmission power is max. 5 W with battery, max. 10W with external power supply. {

{

preliminary information, the technical details are subject to changes, the details on the price and the delivery times are not binding! {

{

{

Technical details ICOM IC 705

transmission power 0.5-5 W with battery, 0.5-10 W with east. 13.8 V of feeding

{

bands: HF + 50 MHz + 144 MHz + 432 MHz

{

Operating methods: SSB, AM, FM, WFM, CW. RTTY, D-Star DV

{

continuous receiver 30 kHz - 146 MHz + 430-440 MHz

color display 4.3 "diagonal

{

dimensions approx. 200 x 80 x 85 mm

{

weight ca. 1 kg with battery

Integrated bluetooth (cat control, audio)

{

integrated GPS, distance recorder, d-star functions

{

micro sd card for firmware updates, configuration save, etc. {

{

connection of the antenna: 1x BNC

Frontal cash

microphone HM-243

connections: micro usb, cw key, est. Tuning, Send/ALC for PA, Earth, Food

connectors of the ic-705:

• {
• BNC antenna socket {
• 3.5mm TRS
  {
• Microphone 2.5mm TRS
  {
• output stadium (send + alc) {
• Taken of the tuner {
• Morse key {
• Micro-Usb socket {
• Taken DC 13.8v {
• Slot for micro-sda cards {
• connection to the ground {

{

Included in delivery:

• {
• IC-705 Allmode, full bandwidth transceiver {
• HM-243 speakers/hand microphone {
• Bat-272 battery {
• Cavo DC {

{

Edit for 60m

we offer the extension of the transmitter IC-705 to the 60 m band. {

Please note that this extension extends only to 60m, there are no other affected bands. {
