ACOM 2000 Asw Remote automatic antenna switch
Order processing times and shipping times:
Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.
Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.
Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.
When will it arrive?
Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.
Deliveries are made Monday through Friday.
Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.
Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.
Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.
{

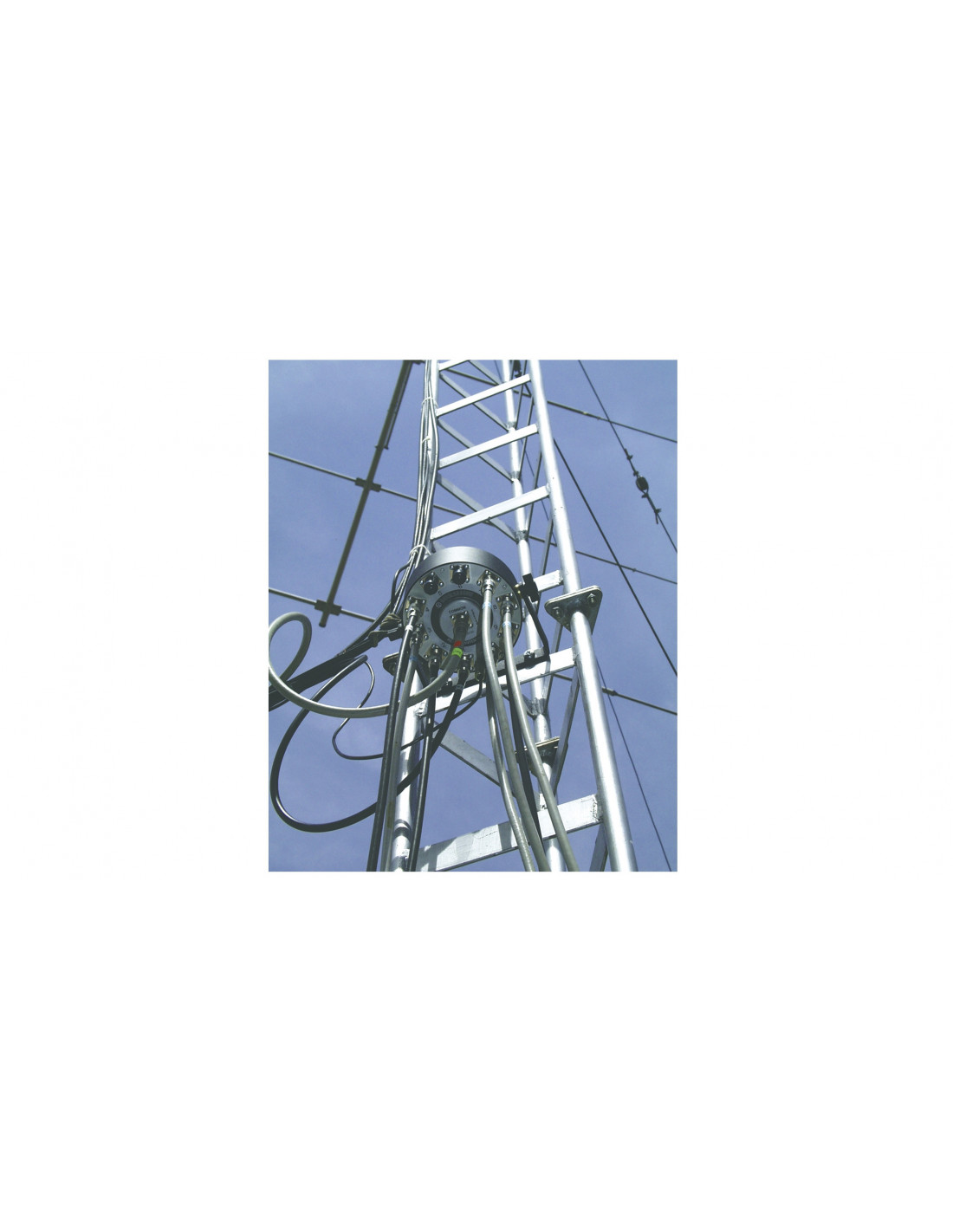

ACOM 2000 Asw Remote automatic antenna switch 10 designed for outdoor use (protected from dust and rain). The 2000SW switch is controlled through 4 -bit BCD input input controls (for example, by the ACOM 2000S automatic antenna selector). {
{Integration capacity
{- {

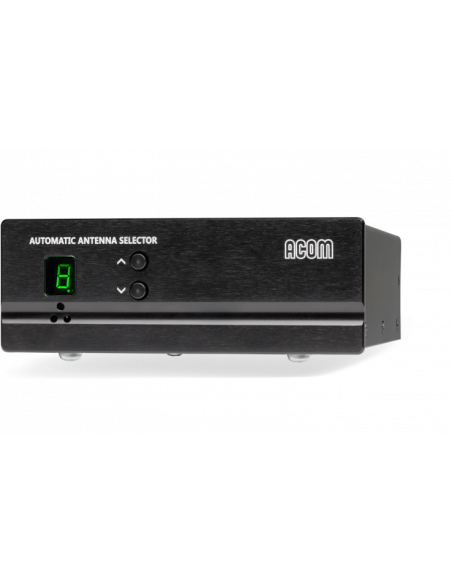

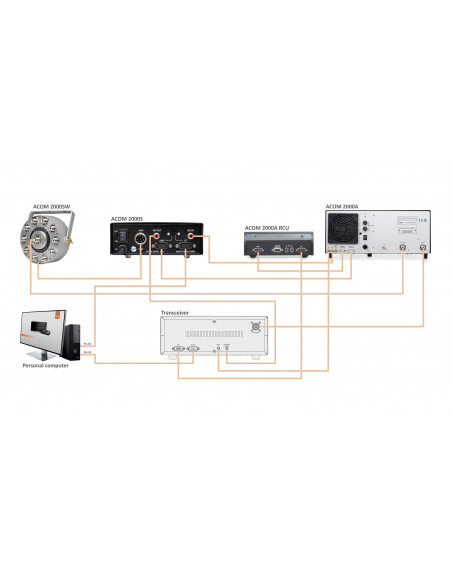

- if used in combination with the ACOM 2000S Antenna selector and the HF ACOM 2000A automatic linear amplifier, the antenna selection information generated by thecom 2000a are communicated to 2000s. 2000s displays the currently selected antenna number and operates the control signals necessary to operate the ACOM 2000sw in a remote position; { {
- the 2000sw is controlled by 4 -bit BCD input input controls (positive or inverted, internally selectable). This makes integration in other automatic antenna systems very simple; {
{
Compatibility
- directly compatible with the linear amplifier HF Automatic ACOM 2000A using the ACOM 2000S Antenna selector;
- The control is compatible with other systems through 4-bit BCD code input controls;
- For manual control there are only a simple switch with BCD coding plus a non-regulated power supply from 27 vdc/150 mA;
Continuous carrier
continuous load-bearing up to 5 kW: isolated connectors in teflon (ptfe) for operation with 100% (continuous) work cycle (continuous). {
{ Construction
Gold contacts for excellent reception, no crossed modulation phenomenon derived from contact. {
{ protection
hot anti-scitching self-revolution for reliable contacts of the contacts. It monitors the RF input power and generates an "ready for transmission" exit signal for maximum operational flexibility. Connect to the ground the unused antennas during operation for excellent isolation of diaphony. After extinguishing, all the antennas are automatically connected to the ground for maximum safety by lightning. {
{ } switching time
operating time less than 0.15 seconds, including rebounds. {
easy to install. Style = "Margin: 0px; Padding: 0px; Border: 0px; Vertical-Align: Inherit; Background: Transparent;"> Only 2 holes are needed, assembly bracket included.
Recommendation both ACOM 2000SW (Remote Antenna switch) and ACOM 2000s (Automatic Antenna selector) work perfectly together. Therefore, it is recommended to order both devices as a package.
Documentation the user manual is available only as PDF file. The latest version of the user's manual is available in the tab download (see above).
