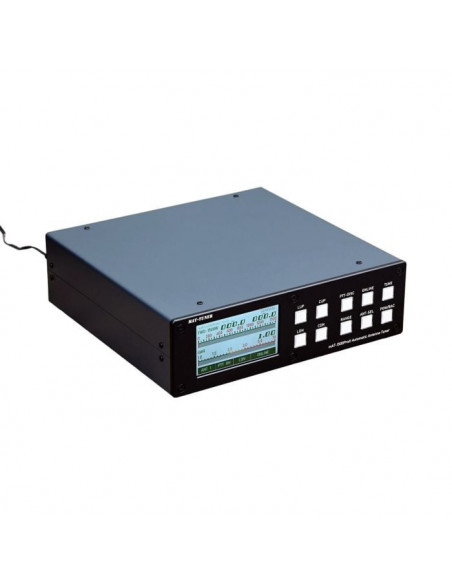

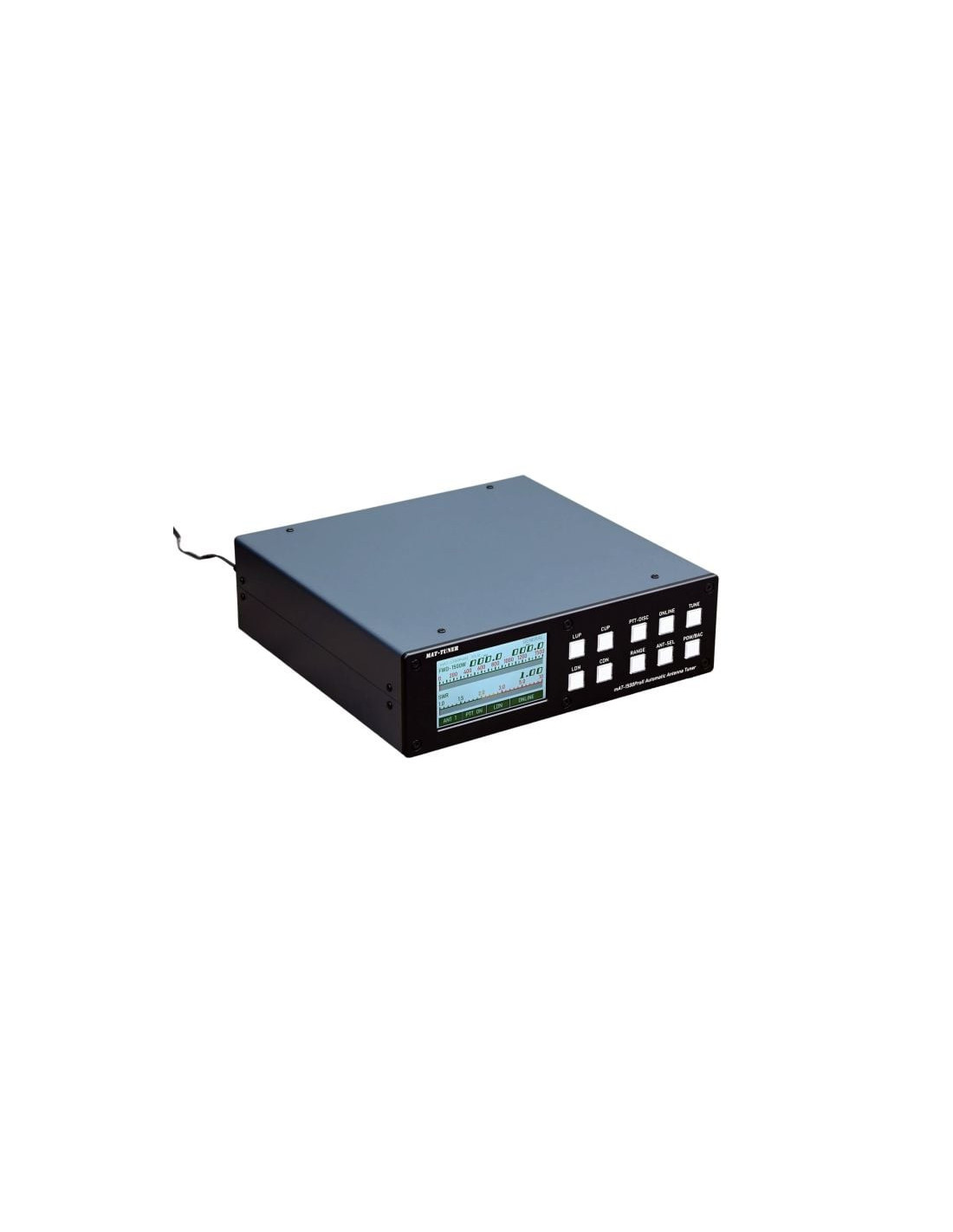

mat 1500pro 2 Automatic tuner 1500W with wattmeter. {
{
works in the frequency range from 1.8 to 30 MHz and adapts to almost all the systems of coaxially powered antennas, whether it is a dipole, a vertical or a Yagi, even with complex impedances. {
The tuner has two connections for antenna (Ant1/Ant2), among which you can go through a button, and offers three operating methods: General, Yaesu and ICOM. Automatically recognizes the connected transmitter, which facilitates its use. In General mode, remote control is possible through the RS232 interface. With the optional control cables Mat-Cy (Yaesu), Mat-Ci (ICOM) or Mat-T (Kenwood), the tuner is controlled and powered directly by the transceiver without the need for an additional power source. It supports YAESU transceiver with standard tuner and ICOM and Kenwood models with 4 -pin compatible connectors (ICOM) or 6 PIN (Kenwood). {
{

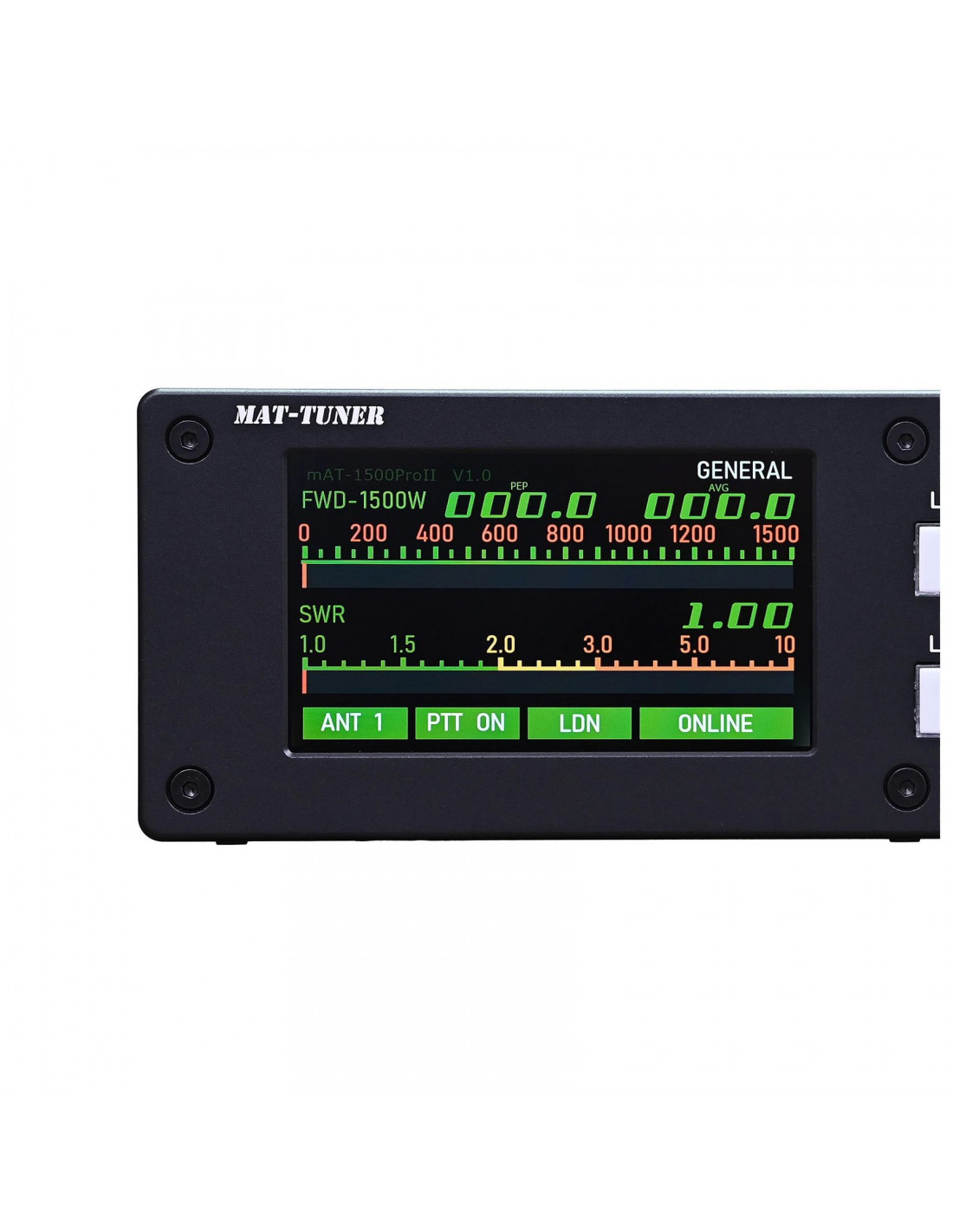

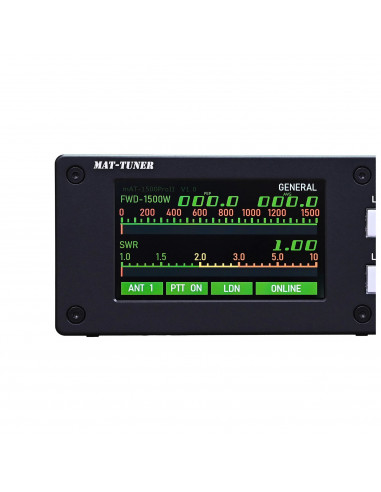

What makes MAT-1500PROII special is its combination of speed, precision and ease of use. With 16,000 memories, it is able to make a tuning in a maximum of 8 seconds with complete tuning or in 0.1 seconds with the frequencies stored. The 4.3 -inch LCD display with 800x480 pixels shows the RF power in real time (PEP/AVG), the SWR and the operating status - in Bypass mode also acts as a precise measurement tool. The SWR measurement remains stable regardless of the power thanks to a special RF measurement chip, which distinguishes it from many standard tunnels. The massive aluminum housing is robust and light (3.5 kg), suitable for internal use or for protected applications at temperatures from -10 ° C to +60 ° C. {
{

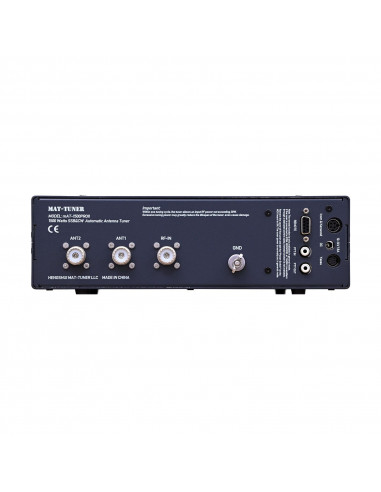

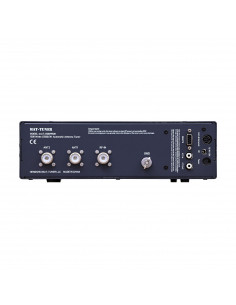

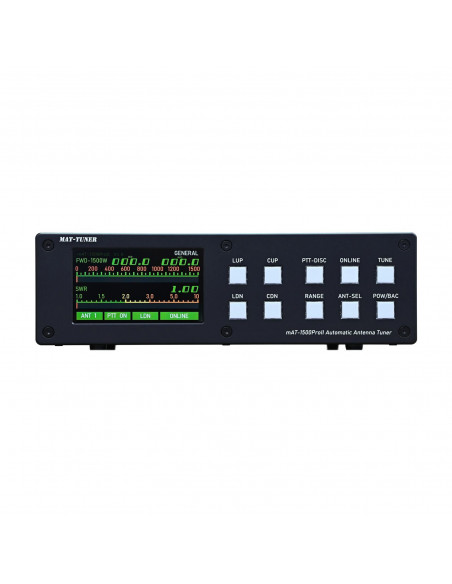

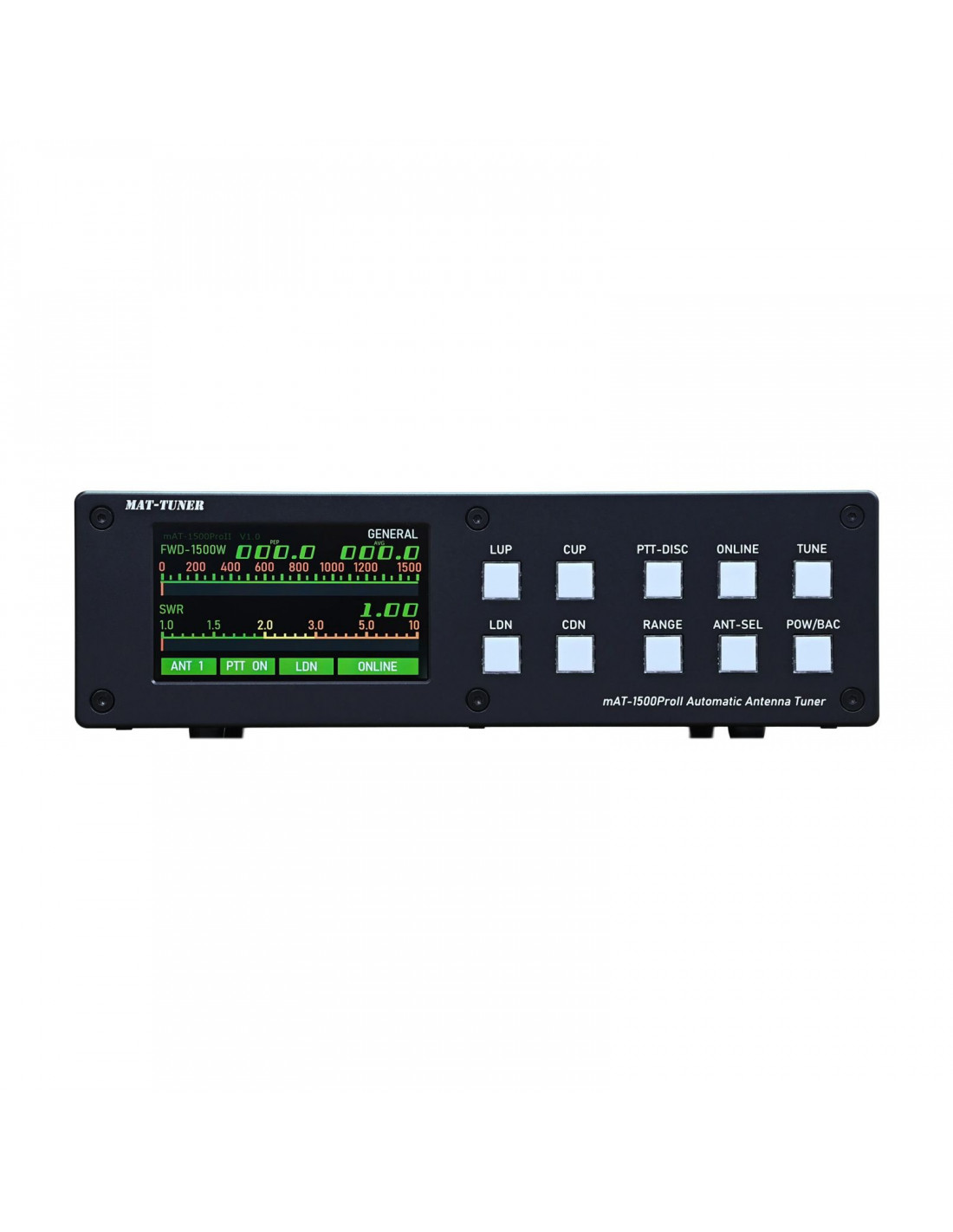

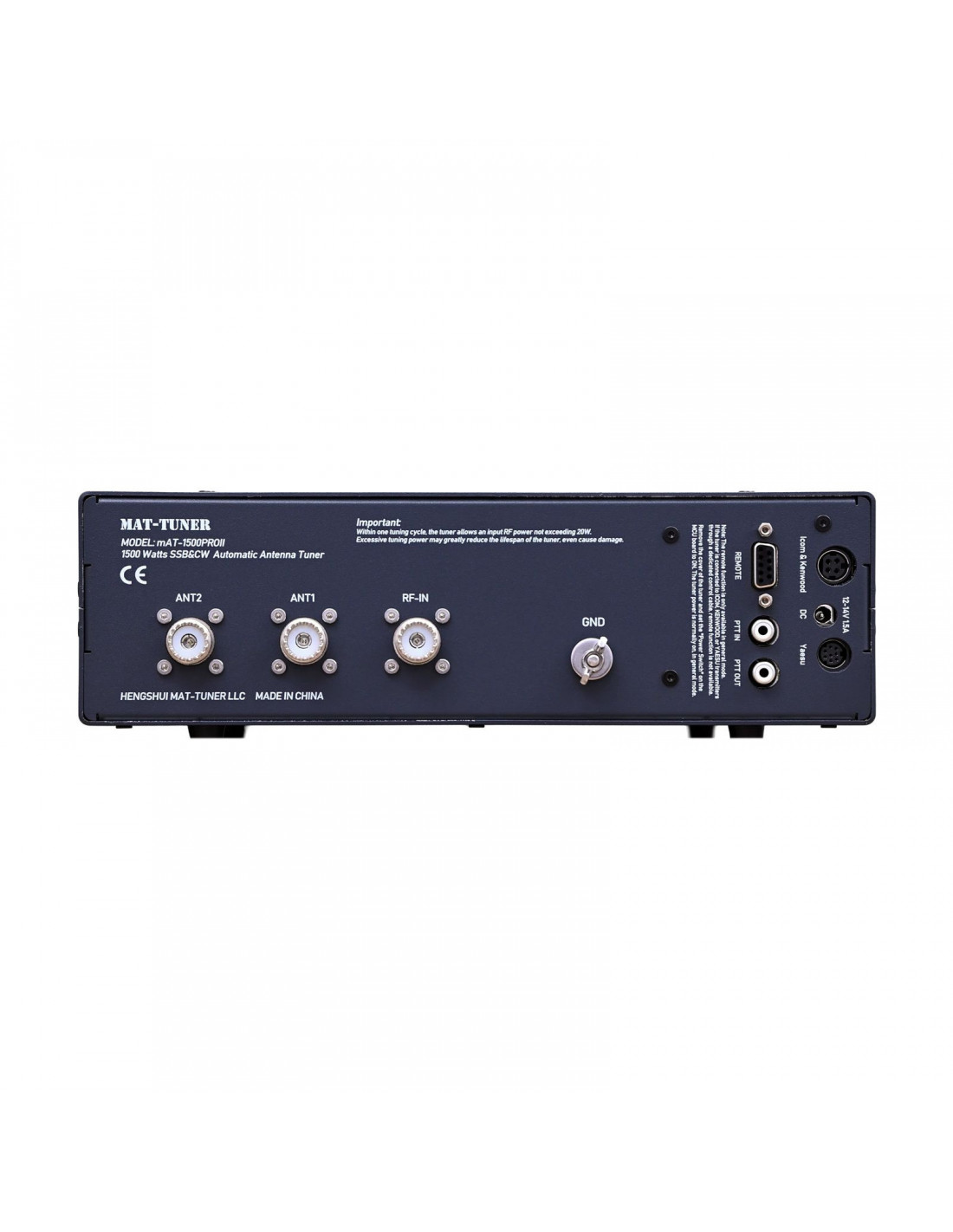

is the only PTT connection with automatic interruption during tuning, which prevents the damage caused by the high performance, as well as the manual fine adjustment option through four buttons (Lup, LDN, CUP, CDN). The connections include "RF-in" and "Ant1/Ant2" (SO-239), "GND" for grounding, control for Yaesu/ICom/Kenwood, a CC socket (12-14 V, 2 A) and RS232 for remote control. Two RCA cables are included for PTT control. {
{
The Mat-1500proii stands out for the high power capacity, the precise measurement of the Ros, the remote control option and the perfect integration with the main transceivers.It is ideal for users who appreciate efficiency and reliability.
technical characteristics:
Frequency range: 1.8-30 MHz
Max Power: 1500 W (SSB), 800 W (Digital)
Tuning: 8 sec. (complete), 0.1 sec. (memory)
technical data
Product Name mat-1500proii
min. Tune Power (W) 5
supported band 160m, 80m, 60m, 40m, 30m, 20m, 17m, 15m, 12m, 11m, 10m
Current Intake (a) 2
Operating voltage [V] 12 - 14 V
Display lcd
Remote control function yes
Memories number 16000
type Automatic Tuning
color black
Range temperatures -10 ℃ ~ +60 ℃
brand mat
weight 3.5 kg
Mass. [W] { 1500 W
frequency range 1.8 - 30 MHz
size W x h x d 290 x 78 x 243
