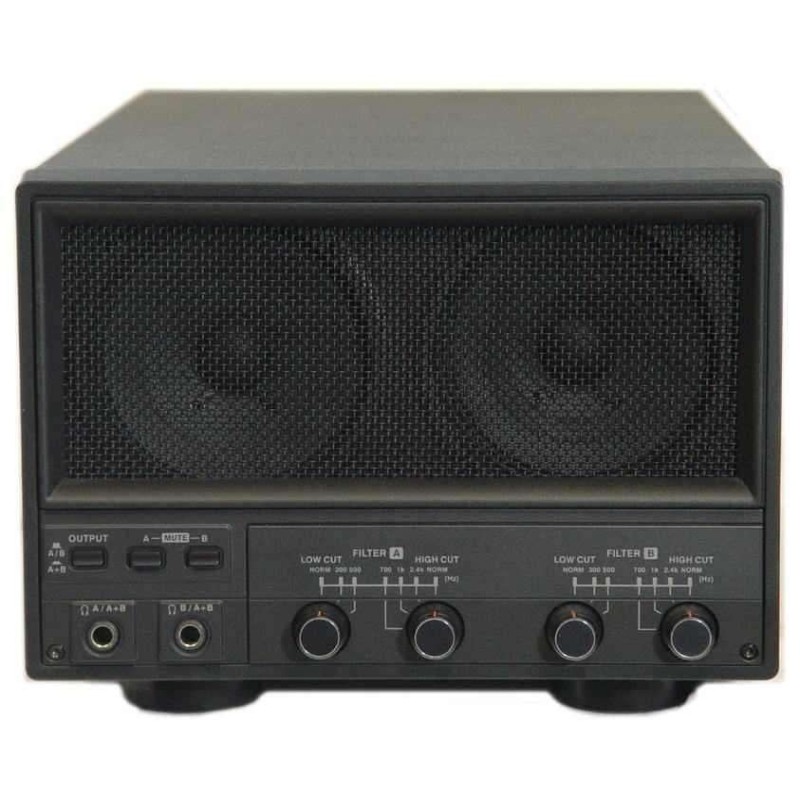

The Yaesu SP-9000 is designed for the FT-9000 series. It has two 100 mm speakers, for independent listening of the main and secondary VFO. {
a switch on the front panel allows you to combine the audio signals of both receivers for the mixed distribution of the two speakers, obtaining an effective 200mm opening for an excellent sound quality. {
{
The dual audio filters provide three high frequencies
-
{
- 2400 Hz
{
- 1000 Hz
{
- 700 Hz
{
and two for the low ones
and each audio entrance (main a / sub b) can be filtered separately, allowing filtering combinations for the best possible reception quality in combination with the two audio sources. {
The two "mute" keys useful for double reception and two headphones are available on the front panel, providing the monitoring of both VFO A and B.
-
{
- maximum input power: 7 Watt
{
- entrance impedance: 8 ohm
{
- frequency response 100-12000 Hz
{
- dimensions: 246x165x438 mm 4 kg
{
