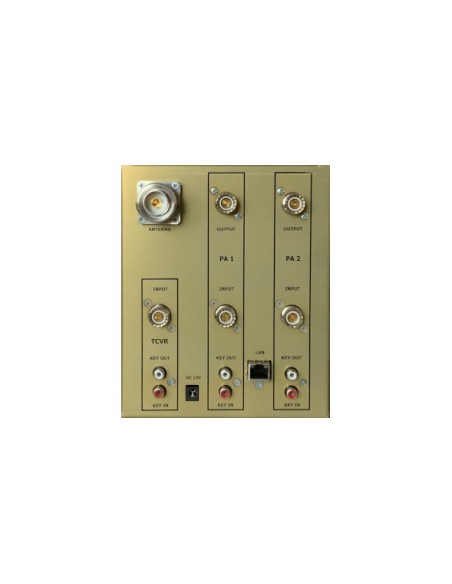

OM POWER OM10C High Power Combiner 10 KW
{
Delivery times from 1 to 2 weeks
{
{
Order processing times and shipping times:
Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.
Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.
Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.
When will it arrive?
Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.
Deliveries are made Monday through Friday.
Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.
Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.
Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.
{

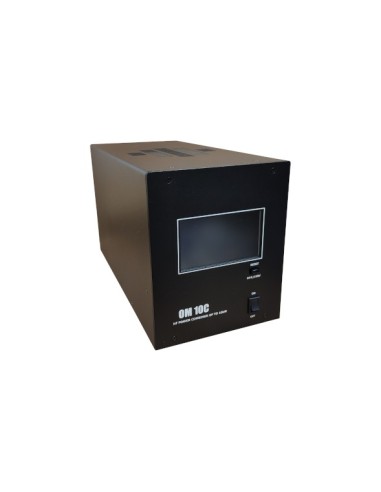

The OM10C High Power Combin is designed for all short wave amateur bands from 1.8 to 29.7 MHz and a 10kw maximum PEP output power. {
{
The OM10C High Power Combin is designed for all short wave amateur bands from 1.8 to 29.7 MHz and a maximum output power of 10 kW pep. {
{
specifications of the OM10C:
{
- {
- frequency coverage: (1.8 - 29.7) MHz Continuous {
- nominal power: { 10 kW pep or continuous carrier in an adapted load (VSWR less than 1.2: 1). Reduce the VSWR output increased, linearly up to 5 kW to VSWR up to 2: 1 {

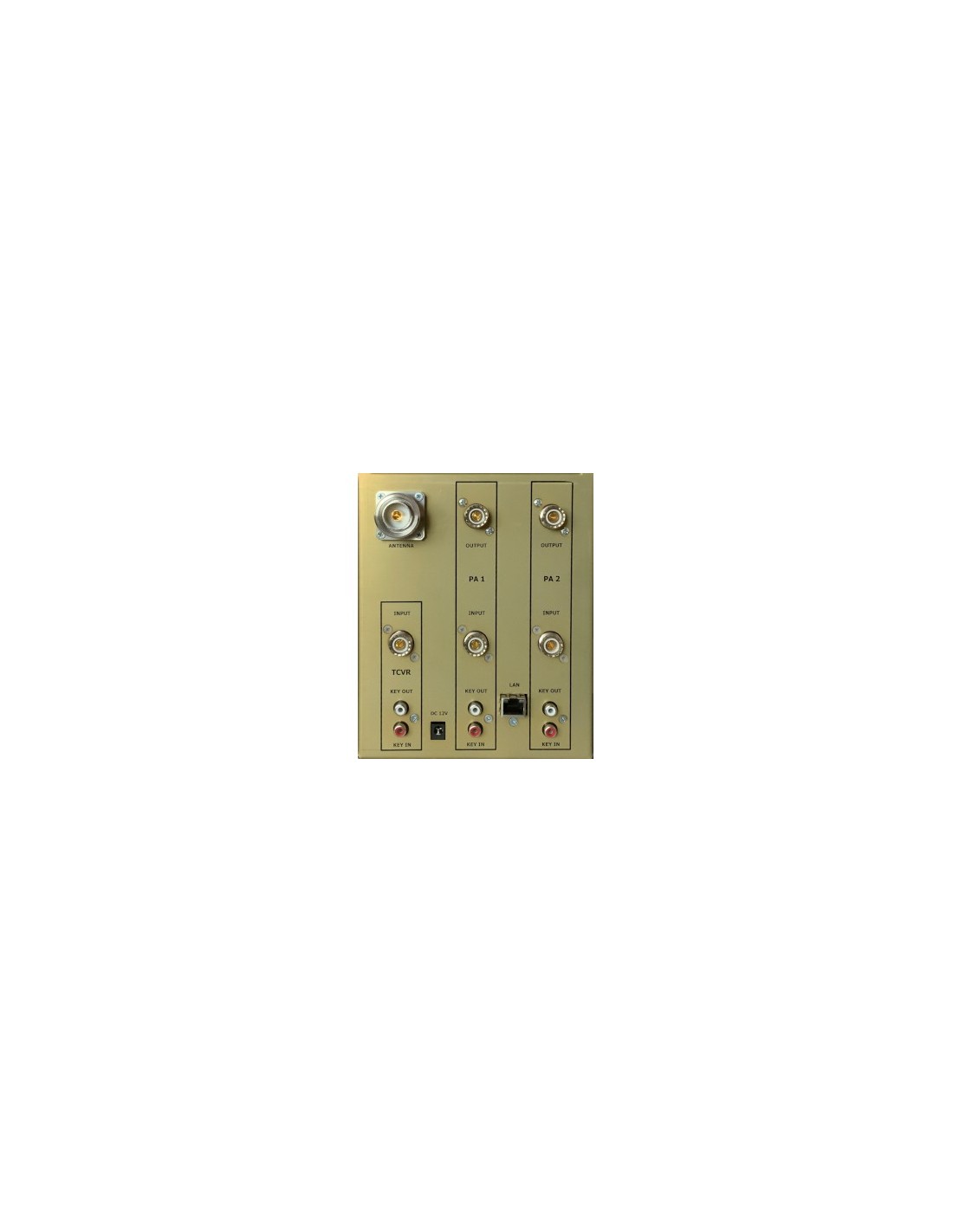

- Entrance impedance: { input connector UHF SO239 unbalanced by 50 ohm {
- SWR: { less than 1.2: 1 on the whole band, VSWR in the input with loads of 50 ohm at the two outputs of the splitter: less than 1.2: 1, (1.8 - 30) MHz continuously (no tuning, no switching) {
- output impedance: { 50 Ohm wasterized, connector output 7/16 “ {
- Loss of insertion: very low insertion loss, less than 0.3 db {

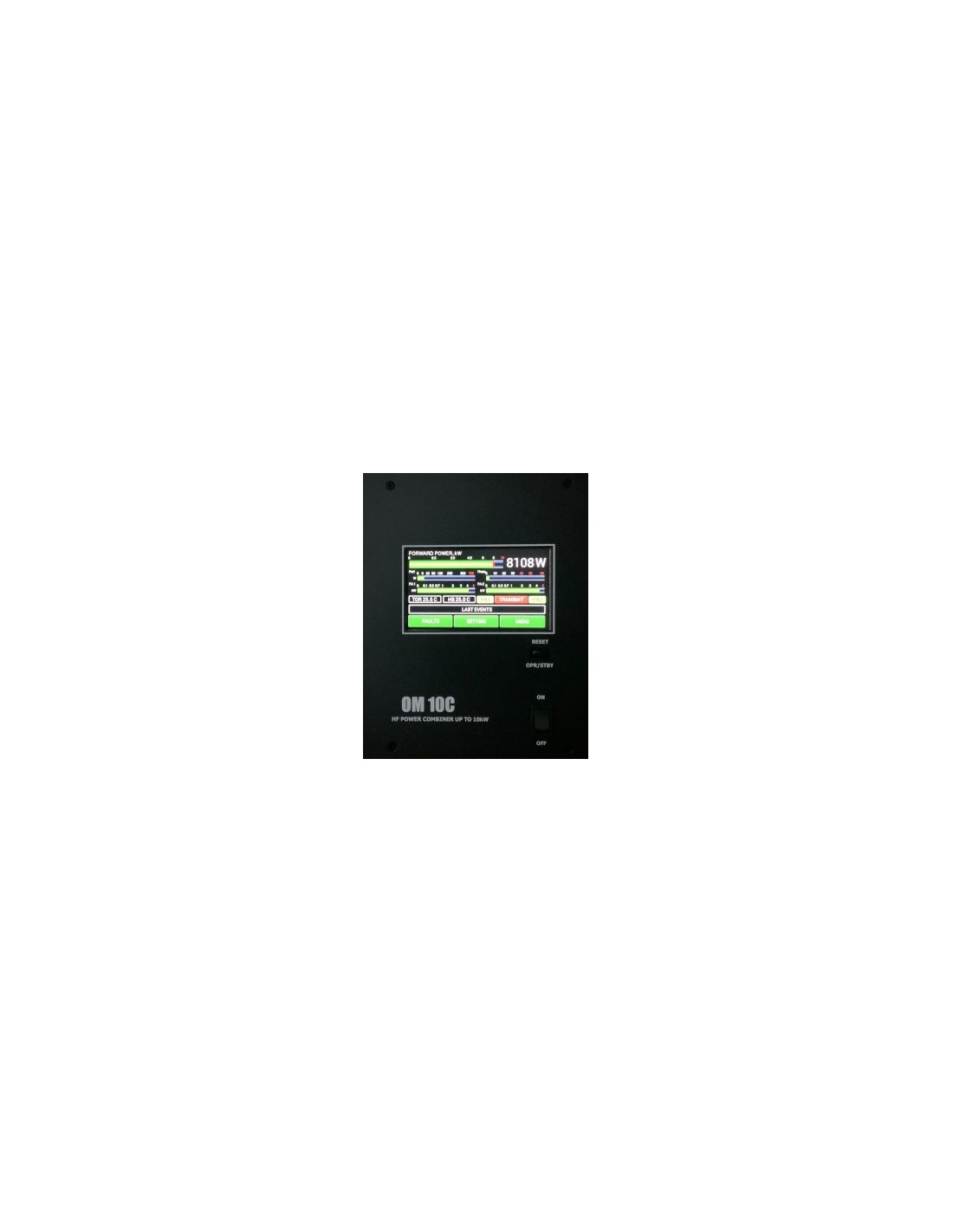

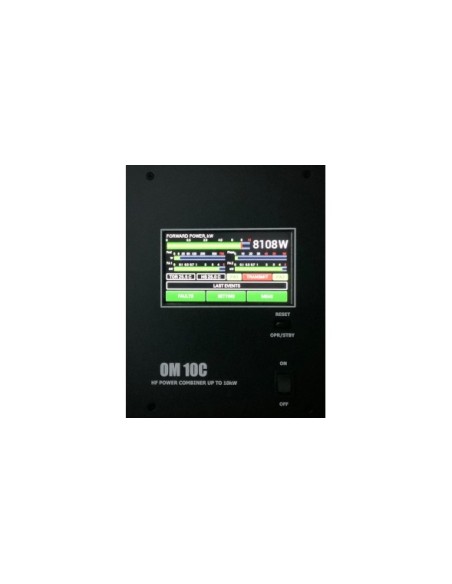

- Indications: 4.3 "color touch screen screen {
- Mechanical parameters: { 165 mm x 200 mm x 350 mm (width x height x depth)
- Weight: 8.1 kg
- LAN connection {
The power amplifier is interfaced to the LAN via Xport produced by Lantronix (type XP1001000-05R). For more information, visit www.lantronix.com. {
The predefined factory settings of Xport are:
{
IP address: 192.168.1.233
Mask: 255.255.255.0
{Gateway: 192.168.1.1
these are strictly predefined settings. You can change any by going to Xport Web Gui via your web browser. We do not recommend changing other parameters of the Xport interface since this could cause a loss of communication. There is no predefined username or password. We highly recommend protecting the web interface with username and password. {
For remote control and monitoring via LAN, special software is required. It is available for free; It can be downloaded from the following link: remote control software version 1.04
Note: For the correct functioning of the software it is necessary to have accessible the LAN 9999 and 10001 doors.
