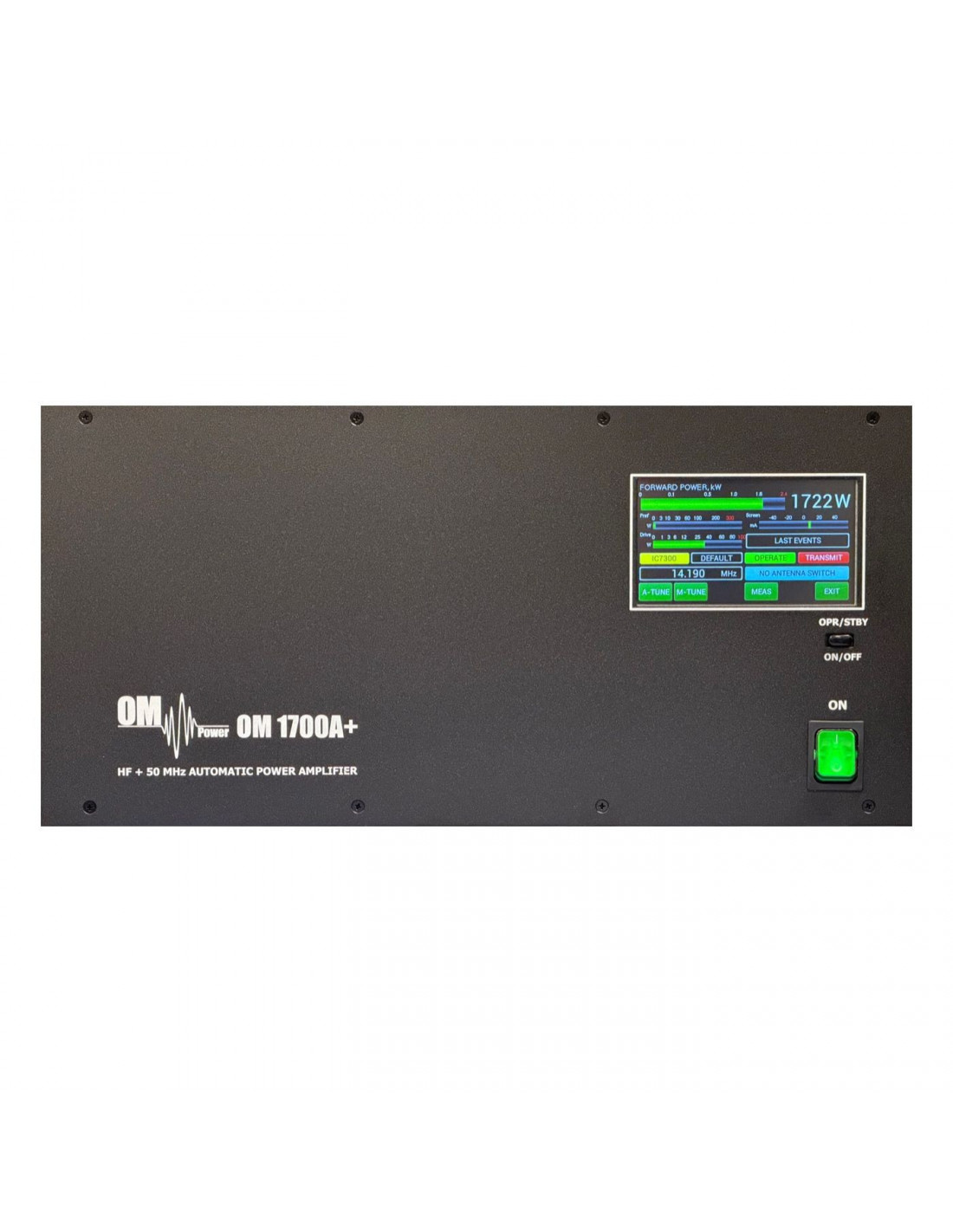

OM POWER OM-1700A+ HF Automatic Love, 1700 Watt

OM POWER OM-1700A+ HF Automatic Love, 1700 Watt is a light and compact Automatic 1700 W. The 4CX1500B ceramic Ceramic provides sufficient power on short waves and 6 m in all situations, both in SSB and in CW or RTTY. To drive it, a normal transmission power with transmission power from 40 to 60w is sufficient. The PA can be used on all bands from 160 to 6 m, including Warc bands. {

The peculiarity of the Potenza Amplifier OM-1700A+ is its fully automatic operation. It is no longer necessary to tune the circuits: the PA measures the transmission frequency and automatically adjusts. This occurs very quickly: in the same band in about 0.5 seconds, when you change bandwidth in about 3 seconds. This fully automatic operation does not even require a cat connection! Of course, all HF municipalities can be connected via Cat, further simplifying the function of the station. Another connection can be made via Ethernet to the local network. In this way it is possible to monitor and control the power amplifier from a remote computer. {

Like all OM-Power Power amplifiers, the OM-1700A+ is equipped with all the usual safety mechanisms, for example the protection against high swrs, current faults or filament voltage, current faults or network voltage, temperature, opening of the envelope and much more. A memory errors helps in the next diagnosis. The 4.3 "color display shows the operating status in a very clear way at any time. The display also acts as (unique) control element (touch display). The connection to the power supply takes place via a 230 V cable; the absorbed power is about 3kva.

Special features of OM-Power OM-1700A+:

Automatic switching of the band

Automatic tuning

Automatic selection of the band filter

light display, also for the error conditions

The memory of errors facilitates diagnosis

Three selectable cooling modes (two fans)

transmission/reception switching with QSK capacity with empty relay

The power transformer can be easily removed to facilitate transport

distance control and monitoring via Ethernet network

Technical data OM-1700A+:

frequency range: 1.8 - 29.7 MHz, 50 - 52 MHz

Exit power:

SSB 1700 W (HF); 1500 W (50 MHz)

CW 1700 W (HF); 1500 W (50 MHz)

RTTY 1300 W (HF);

ft8 1000 W (HF); 800 W (50 MHz)

Entry power: 40-60 W

Input impedance: 50 Ω (VSWR ≤ 1.5: 1)

Exit impedance: 50 Ω unbalanced

earnings: 15 db

SWR Massimo Admissible (exit): 3: 1

SWR protection circuit: automatic shutdown in case of reverse power ≥ 350 W

Intermoduulation products: ≤ 32 DBC

Suppression of the Spuries: 1.8 - 30 MHz ≥ 50 DBC

30 - 54 MHz ≥ 70 DBC

Tuning speed: 0.5 s in the band, max. 3 s off the band

Tube: 4CX1500B

fan: 1x radial, 1x axial

Input voltage: 200, 220, 230, 240 Vac 50/60 Hz
