G5RV 4 Bande 40 10m antenna without Balun

G5RV 4 Bande 40 10m antenna without Balun

Name: G5RV 4 Bande 40 10m antenna without Balun
Brand: wimo
SKU: 11387
Price: 68.57 EUR
Availability: InStock

Reference 11387

In Stock

€68.57

Order processing times and shipping times:

Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.

Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.

Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.

When will it arrive?

Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.

Deliveries are made Monday through Friday.

Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.

Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.

Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.

{

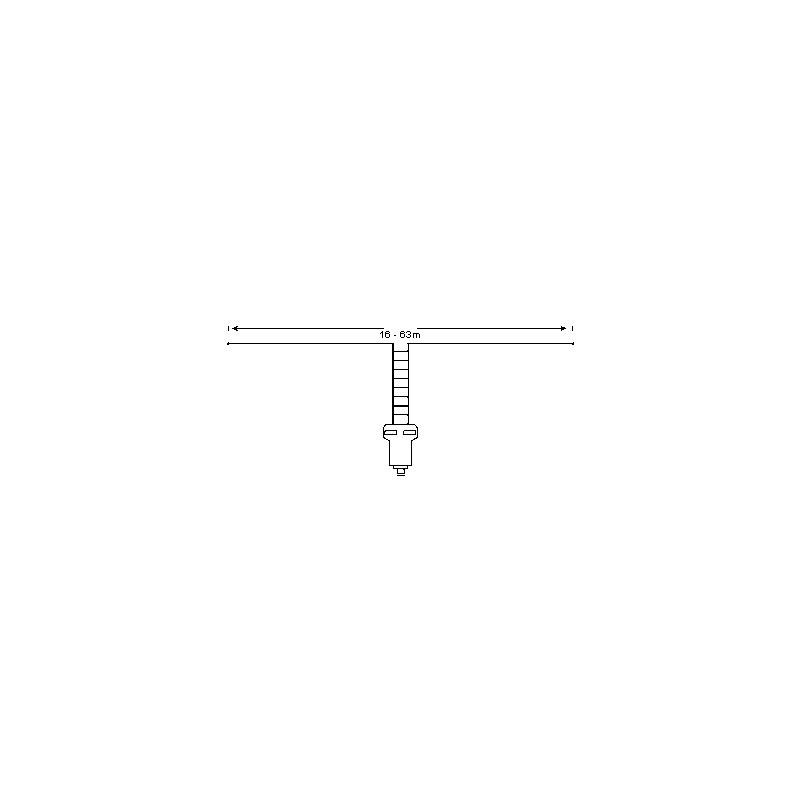

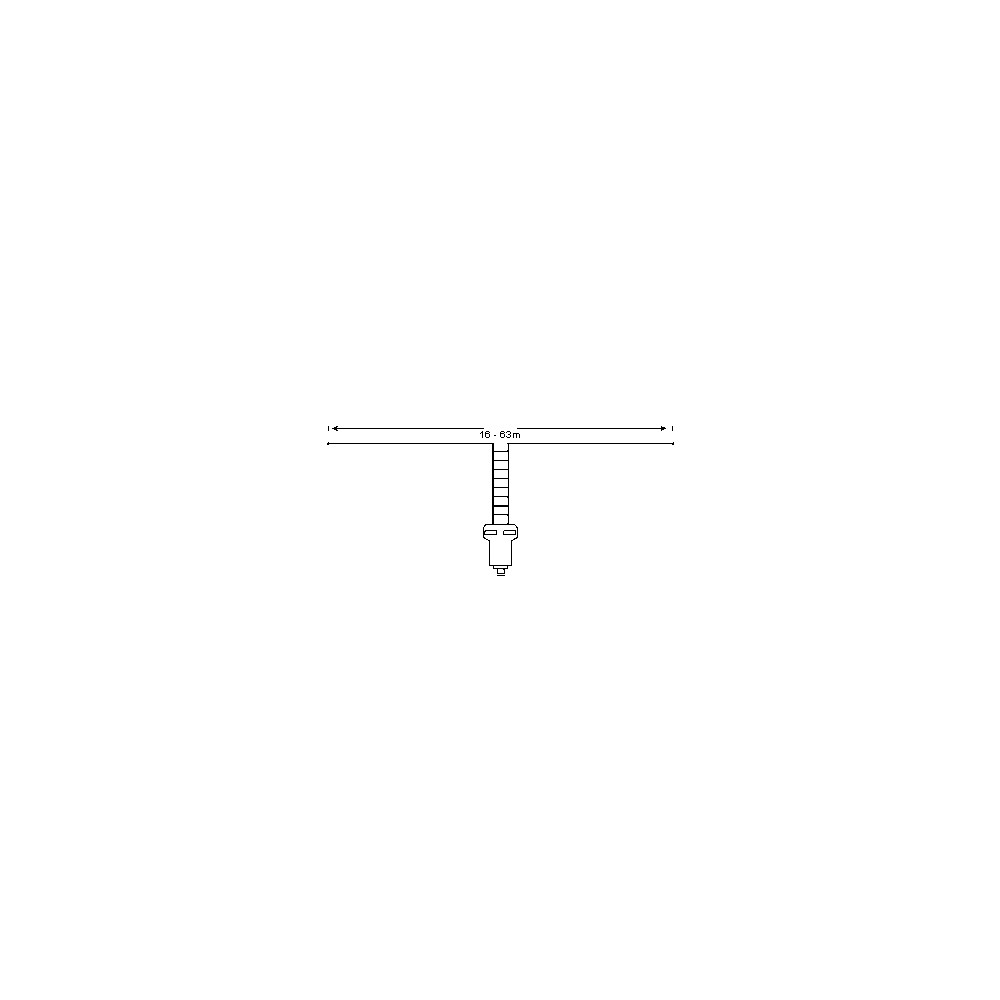

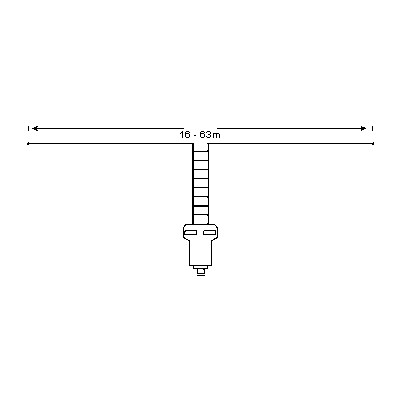

good antenna for all bands from 80 to 10m (or 40 to 10m, or from 160 to 10m), consistent with a 31m long dipole which is powered with a parallel line (450 Ω) 10m long. At the end of the parallel line, you can use a coaxial of any length (the version with Balun requested). {
The SwR on the radio amateur bands is between 1: 1 and 1: 4, so a touched member is required. He also works well, but with reduced efficiency, on the Warc bands. {
Max. Power 1kw SSB/CW, full supplied with parallel power supply line, antenna wire covered in PVBC. {
If you have enough space, the G5RV (version 40m or 80m) can be used together with our Mast in fiberglass Hang one side (the hot side) of the antenna to the Mast L ', more (cold) Saraa' used as radial. The Ladder line will be used as a second radial. {

article	bands	length	Feedline length	Balun

G5RV 5-Land	80-10m	31m	9.50m 2	without
G5RV 5 Bands	80-10m	31m	9.50m 2	With Balun 1: 1
G5RV 4-Bande	40-10m	16m	4,80m	without
G5RV 4 bands	40-10m	16m	4,80m	with Balun 1: 1

MPN: 7438641839230
Sku: 11387

Condition New
