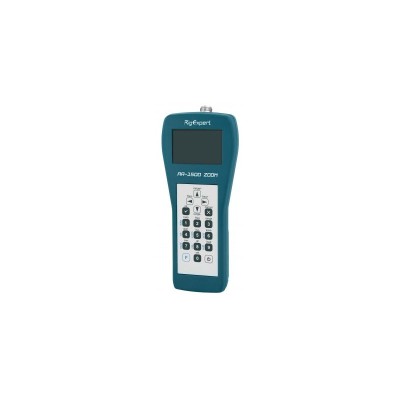

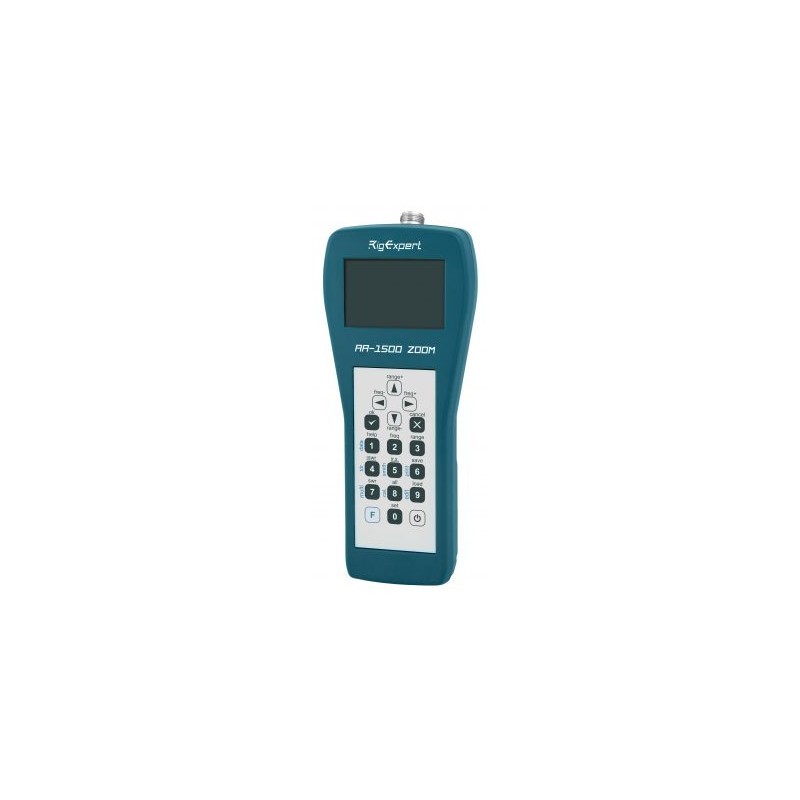

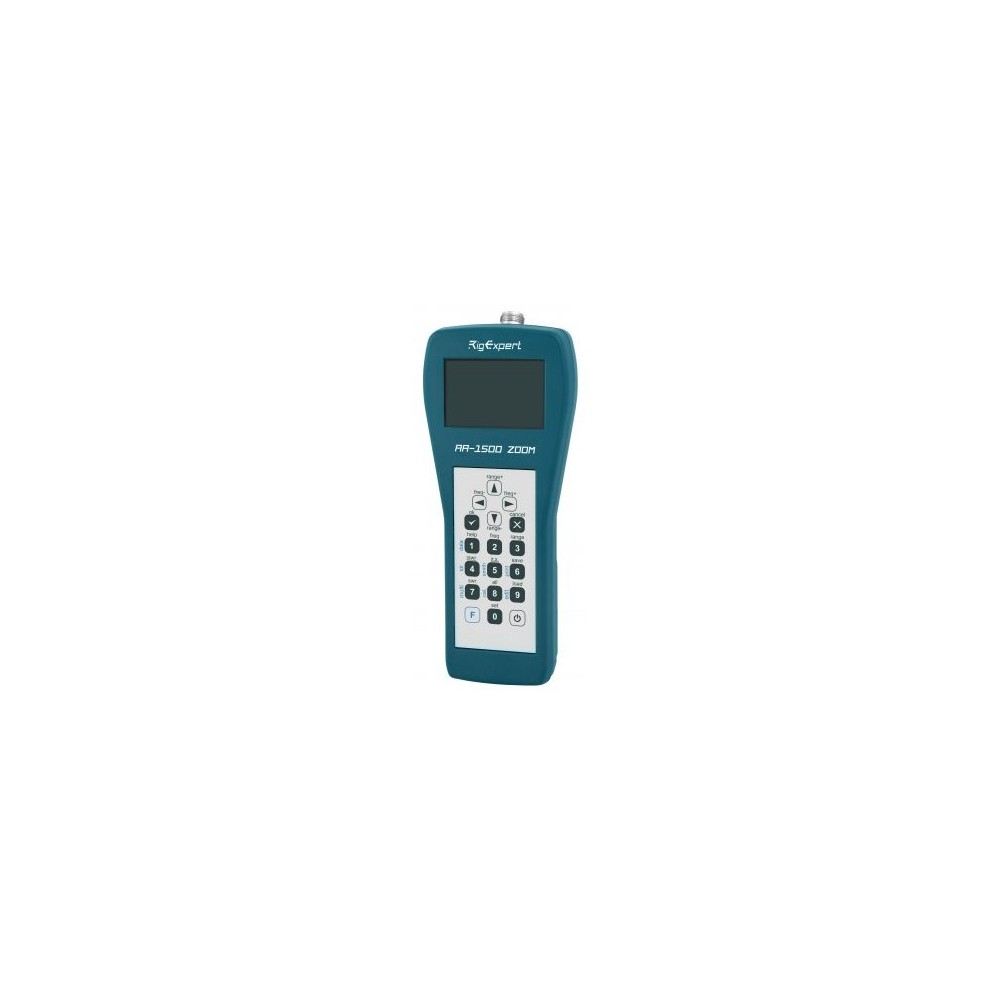

RIGEXPERT AA 1500 Zoom Analyzed of Antenna up to 1500 MHz
Order processing times and shipping times:
Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.
Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.
Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.
When will it arrive?
Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.
Deliveries are made Monday through Friday.
Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.
Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.
Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.
{
{{{} - Multilingual menu Help screens (English - Spanish - Japanese)
- USB connection to a personal computer
- Bluetooth v. 4.2 (Single mode, class B)
dimensions: 23x10x5.5 cm (9x4x2 ") {
RIGEXPERT AA 1500 Zoom analyzed by antenna up to 1500 mHz
frequency range: from 0.1 to 1500 mHz
{frequency entrance: resolution 1 kHz
{measure for 25, 50, 75, 100, 150, 200, 300, 450 and 600 ohm
{{ SWR measurement interval: from 1 to 100 in numerical mode, from 1 to 10 in graphic mode
{interval r and x: 0 ... 2000, -2000 ... 2000
View mode: Style = "vertical-align: inherit;"> swr, return loss, r, x, z, c, magnitude and phase corner to a single frequency, SWR graphic (100 points). swr graphic on HAM bands fixed for IAru regions (100 points), cable tools (speed length length factor, stub tuner, cable loss diagram, cable impedance diagram), tdr
optional calibration to be loaded short in the methods of the graphic graph SWR, R, X or Smith/Polare.
RF:
< Style = "vertical-align: inherit;">-type of connector: n
-form of the output signal: square, from 0.1 to 200 mhz. Style = "Vertical-align: inherit;"> for higher frequencies, the harmonics of the main signal are used. /f.
Power:
-three 1.2 V batteries, 1800 ... 3000 mAh, Ni-Mh, type AA
{ - Max. 3 hours of continuous measurement, max. { 2 days in standby mode when completely charged batteries are used
{{} - When the analyzer is connected to a PC or a CC adapter with a USB socket, takes energy from these sources {{}
{{
Interface: {
- color TFT display 320 × 240
{{} - keys 6 × 3 on the waterproof keyboard
{{{} - Multilingual menu Help screens (English - Spanish - Japanese)
- USB connection to a personal computer
- Bluetooth v. 4.2 (Single mode, class B)
dimensions: 23x10x5.5 cm (9x4x2 ") {
Operating temperature: 0 ... 40 ° C (32 ... 104 ° F)
{Weight: 650g (23 OZ)
Guarantee: 2 years of rejection care
Gutin-13: < Style = "vertical-align: inherit;"> 4820185420303
RIGEXPERT AA-1500 Zoom is produced in Ukraine.
